SDR Series Power Supplies | 120-480W, Industrial AC/DC power supply, DIN rail mount
The ruggedized SDR Series industrial power supply is a functional accessory for Allied Telesis products to build a solution suitable for Smart Cities (e.g. Surveillance & Security), Industrial Ethernet, Transportation or any application requiring systems that function in harsh environment with extended operating temperature.
Overview

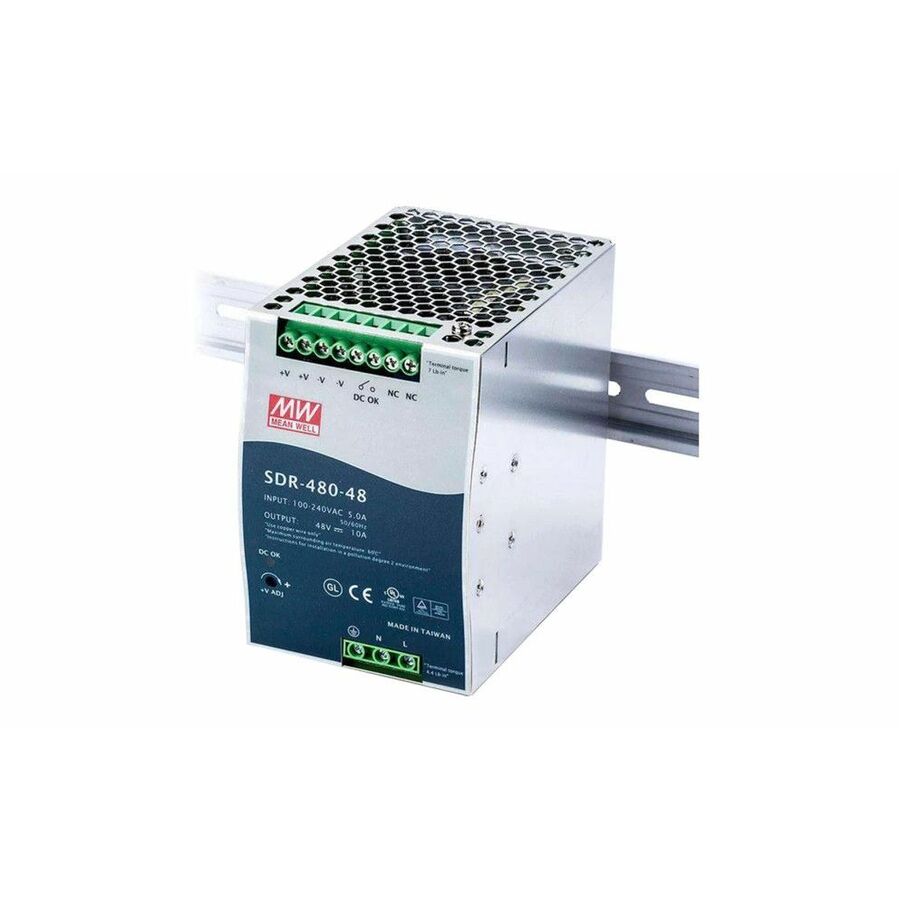

The SDR Series are power supplies delivering reliable 120-480W output power.
Housed in compact metal case with DINrail clip, it takes special account of the mechanical robustness, electromagnetic compatibility and thermal characteristics to exhibit the required strengths to work satisfactorily in harsh environment where it will be exposed.
Its highly efficient and stable output power has the capability to support 150% of peak load
The AC/DC rectifier operates over the full range of AC input voltage to fit worldwide power grids. The included active Power Factor Correction circuit (PFC) reduces energy costs by eliminating reactive power and harmonics from power lines. Besides the increment of efficiency, PFC is to comply with international regulations, which established limits on harmonic currents that can appear on the AC main line.
- Converts current to the desired voltage and frequency to manage your power requirements
- 48 V DC ensures steady and uninterrupted power supply to your device
| Brand | |
|---|---|
| Brand | Allied Telesis |
| Power & Battery | |
|---|---|
| Input Frequency | 47 ~ 63Hz |
| Input Voltage | 230 V |
| Output Voltage | 48 V DC |
| Output Current | 15 A |
| Efficiency | 94% |
| Power Factor Correction (PFC) | Active |
| Size / Dimensions | |
|---|---|
| Form Factor | DIN Rail Mountable |
| General Features | |
|---|---|
| Protection Type | Over Temperature |
| MTBF | 964200 Hour |
| Manufacturer | Allied Telesis, Inc |
| Compliance & Certification | |
|---|---|
| Maximum Operating Temperature | 158°F (70°C) |
| Minimum Operating Temperature | -13°F (-25°C) |
