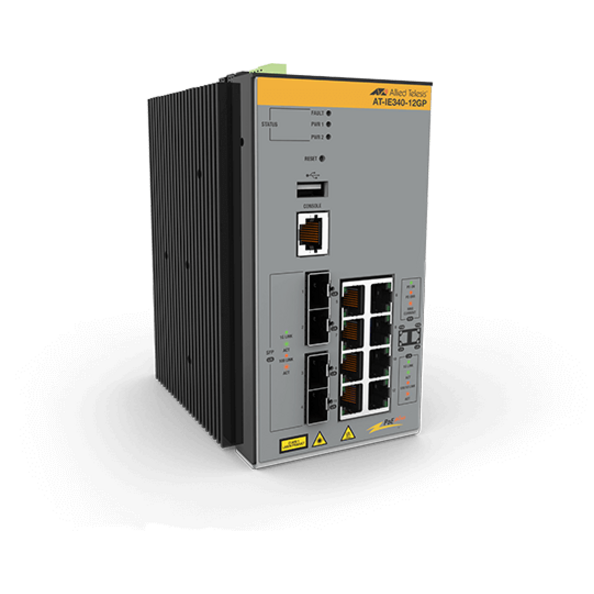

The Allied Telesis IE340-12GP managed switch features 8 x 10/100/1000T PoE+ copper ports and 4 x 100/1000X SFP uplinks. A comprehensive feature-set, and built in security, make it ideal for high-density Industrial Environments.
- 24Gbps switch fabric and 17.8Mpps forwarding packet rate
- 16K MAC addresses
- 4K VLANs
- 9KB jumbo frame size
- 8 QoS priority queues
- 511 (Layer 2), 256 (Layer 3) Multicast groups
- IEEE 802.3at PoE+ sourcing (30W)
- 240W PoE power budget
- Alarm input and output ports
- -40°C to 75°C
- Layer 3 Switch ensures productivity by providing an efficient, hassle-free connection
- Quickly and easily set up a wired network with 8 networking ports
- PoE+ port to receive data and up to 25.5 W of power on a single cable in places where a power outlet is not available
- Supports layer 3 switching for enhanced performance and usability
- With Wall mounting feature, you can conveniently install the switch while keeping the wires and cables organized
- Management capability allows maximum efficiency and with unrestricted control
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
| Brand | |
|---|---|
| Brand | Allied Telesis |
| Power & Battery | |
|---|---|
| PoE Budget | 240 W |
| Power Source | PoE+ |
| Power Consumption | 271 W |
| Networking & Connectivity | |
|---|---|
| Network Technology | 1000Base-X |
| Layer Supported | 3 |
| Ethernet Port | |
|---|---|
| Total Number of Network Ports | 8 |
| PoE (RJ-45) Port | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Wall Mountable |
| Appearance | |
|---|---|
| Modular | Yes |
| General Features | |
|---|---|
| Manageable | Yes |
| Manufacturer | Allied Telesis, Inc |
| Expansion Slots | |
|---|---|
| Total Number of Expansion Slots | 4.0 |
| Expansion Slot Type | SFP (mini-GBIC) |
| Number of SFP Slots | 4 |
| Misc Ports | |
|---|---|
| Port/Expansion Slot Details | 4 x Gigabit Ethernet Expansion Slot |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Optical Fiber |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
