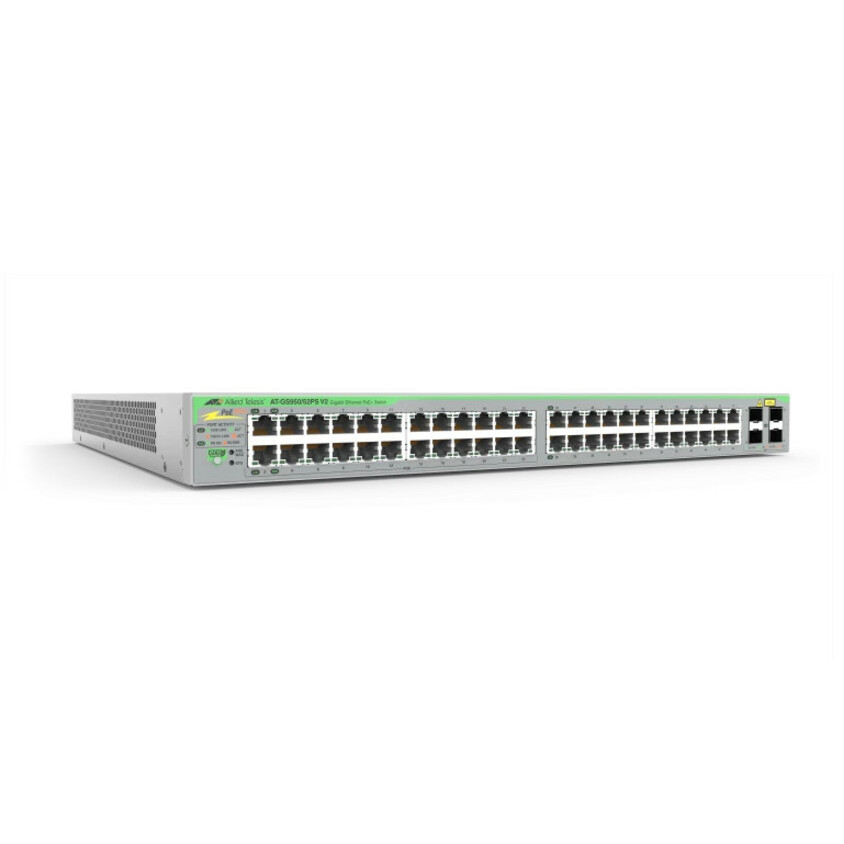

Gigabit WebSmart Edge Switches
The Allied Telesis GS950 V2 Series of WebSmart network switches demonstrates the Allied Telesis commitment to environmentally-friendly processes and products, minimizing power consumption through the use of a high efficiency power supply and a low power chipset. Featuring PoE+, GS950 V2 Series switches at the network edge are the ideal cost-effective solution for small businesses.
Ease of management and high performance
These advanced Allied Telesis WebSmart switches combine the simplicity of unmanaged switches with the performance and reliability of managed switches. This provides a cost-effective, secure and reliable solution for integrated management at the network edge. With user-friendly web-based management, the GS950 V2 Series is ideal for integrating simple management and security into your network solution.
Power over Ethernet (PoE)
The GS950/10PS V2, 18PS V2, 28PS V2 and 52PS V2 switches are available in PoE+ (IEEE 802.3at), with the capability of delivering up to 30W per port.
PoE allows users to connect and power a device using a single Ethernet cable, thus eliminating the need for additional power outlets and simplifying installation. Furthermore, this system is unaffected by any local variance in AC power, offering a standardized power infrastructure.
- VLAN: IEEE 802.1Q tagged - Port-based - Up to 256 groups
- Quality of Service Classification: IEEE 802.1p tagging - Port-based priority - Four priority queues per port
- IP Multicast Support (IPv4) - IGMP snooping (v1/v2) - Static multicast group (up to 256) - Spanning-Tree, IEEE 802.1d/w/s
- IEEE 802.3ad Link Aggregation: Manual - LACP
- IEEE 802.1x Port-based, MAC-based and Network Access Control: Local authentication server (MD5 only) - Remote authentication through RADIUS - Dynamic VLAN assignment - RADIUS Client
- Other: IEEE 802.3x flow control or HOL blocking prevention ( when flow control is off) - Port mirroring - Destination MAC filtering - Ingress/egress rate limiting - Broadcast storming control - 100 FX SFP support - Jumbo Frames - up to 10K
- Management Features: SSH - Telnet - Web-based configuration - CLI configuration - SNMP trap view - LLDP - Firmware upgrade by FTP and HTTP - Configuration backup/restore by FTP and HTTP - Factory reset - Password access control and restricted - IP access list - SNMPv1/
| Brand | |
|---|---|
| Brand | Allied Telesis |
| Power & Battery | |
|---|---|
| PoE Budget | 370 W |
| Power Source | Power Supply |
| Power Consumption | 150 W |
| Networking & Connectivity | |
|---|---|
| Network Technology | 100/1000Base-X |
| Layer Supported | 2 |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Total Number of Network Ports | 48 |
| PoE (RJ-45) Port | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Desktop |
| Appearance | |
|---|---|
| Modular | Yes |
| General Features | |
|---|---|
| Manageable | Yes |
| Manufacturer | Allied Telesis, Inc |
| Expansion Slots | |
|---|---|
| Total Number of Expansion Slots | 4.0 |
| Expansion Slot Type | SFP (mini-GBIC) |
| Number of SFP Slots | 4 |
| Misc Ports | |
|---|---|
| Port/Expansion Slot Details | 24 x Gigabit Ethernet PoE |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Optical Fiber |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
