Allied Telesis GS950/18PS V2 Ethernet Switch

$ 836.49 $ 836.49
$ 836.49

$ 836.49 / Units
  • Brand
  • Depth
  • Weight (Approximate)
  • Height
  • Product Name
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Width
  • Network Technology
  • Manageable
  • Modular
  • Network (RJ-45)
  • Total Number of Network Ports
  • PoE (RJ-45) Port
  • Total Number of Expansion Slots
  • Expansion Slot Type
  • Number of SFP Slots
  • Port/Expansion Slot Details
  • Form Factor
  • Ethernet Technology
  • Networking Standards
  • Layer Supported
  • PoE Budget
  • Media Type Supported
  • Environmentally Friendly
  • Environmental Compliance
  • Package Contents
  • Manufacturer
  • Product Type
  • Product Series
  • Product Model
  • Manufacturer Website Address
  • Power Source
  • Power Consumption
Add to cart
Buy now
Add to wishlist
This product is eligible for 30-day returns. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days
Contact Us
Documents
Manufacturer-Brochure PDF

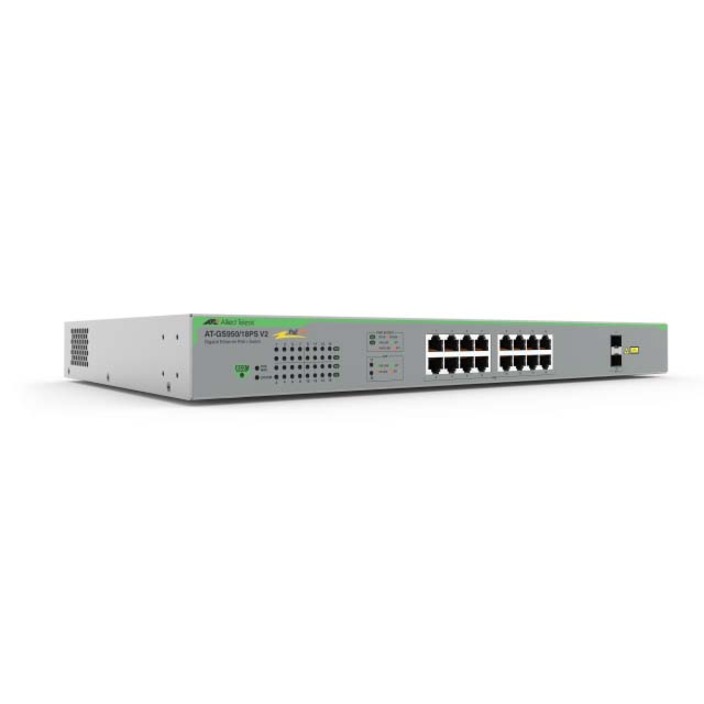

The Allied Telesis GS950/18PS V2 Gigabit PoE+ WebSmart switch features 16 x 10/100/1000T ports and two SFP ports, delivering up to 30 Watts per port (PoE+) to support video surveillance cameras, wireless access points, IP phones and other PoE powered devices. PoE+ eliminates the need for separate power cabling and minimizes the clutter of power supplies and adapters for simplified deployment. Thanks to its compact size, the AT-GS950/18PS V2 is ideal for the edge of SMB businesses, classrooms, cafes and Point of Sale (POS) applications.

  • VLAN: IEEE 802.1Q tagged - Port-based - Up to 256 groups
  • Quality of Service Classification: IEEE 802.1p tagging - Port-based priority - Four priority queues per port
  • IP Multicast Support (IPv4) - IGMP snooping (v1/v2) - Static multicast group (up to 256) - Spanning-Tree, IEEE 802.1d/w/s
  • IEEE 802.3ad Link Aggregation: Manual - LACP
  • IEEE 802.1x Port-based, MAC-based and Network Access Control: Local authentication server (MD5 only) - Remote authentication through RADIUS - Dynamic VLAN assignment - RADIUS Client
  • Other: IEEE 802.3x flow control or HOL blocking prevention ( when flow control is off) - Port mirroring - Destination MAC filtering - Ingress/egress rate limiting - Broadcast storming control - 100 FX SFP support - Jumbo Frames - up to 10K
  • Management Features: SSH - Telnet - Web-based configuration - CLI configuration - SNMP trap view - LLDP - Firmware upgrade by FTP and HTTP - Configuration backup/restore by FTP and HTTP - Factory reset - Password access control and restricted - IP access list - SNMPv1/
Brand
Brand Allied Telesis
Power & Battery
PoE Budget 185 W
Power Source Power Supply
Power Consumption 75 W
Networking & Connectivity
Network Technology 100/1000Base-X
Layer Supported 2
Ethernet Port
Network (RJ-45) Yes
Total Number of Network Ports 16
PoE (RJ-45) Port Yes
Size / Dimensions
Form Factor Desktop
Appearance
Modular Yes
General Features
Manageable Yes
Manufacturer Allied Telesis, Inc
Expansion Slots
Total Number of Expansion Slots 2.0
Expansion Slot Type SFP (mini-GBIC)
Number of SFP Slots 2
Misc Ports
Port/Expansion Slot Details 2 x Gigabit Ethernet Expansion Slot
Printer/Scanner/Fax Specs
Media Type Supported Optical Fiber
Compliance & Certification
Environmentally Friendly Yes
