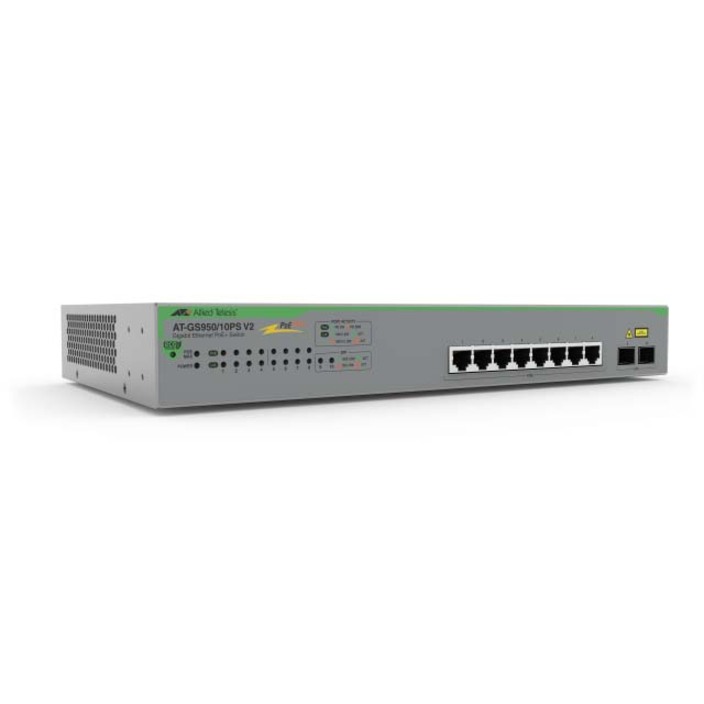

The Allied Telesis GS950/10PS V2 Gigabit PoE+ WebSmart switch features 8 x 10/100/1000T ports and two SFP ports, delivering up to 30 Watts per port (PoE+) to support video surveillance cameras, wireless access points, IP phones and other powered devices. PoE+ eliminates the need for separate power cabling and minimizes the clutter of power supplies and adapters for simplified deployment. Thanks to its compact size, the AT-GS950/10PS V2 is ideal for wiring-constrained and smaller environments such as micro branch offices, classrooms, cafes, and smaller retail stores.
- VLAN: IEEE 802.1Q tagged - Port-based - Up to 256 groups
- Quality of Service Classification: IEEE 802.1p tagging - Port-based priority - Four priority queues per port
- IP Multicast Support (IPv4) - IGMP snooping (v1/v2) - Static multicast group (up to 256) - Spanning-Tree, IEEE 802.1d/w/s
- IEEE 802.3ad Link Aggregation: Manual - LACP
- IEEE 802.1x Port-based, MAC-based and Network Access Control: Local authentication server (MD5 only) - Remote authentication through RADIUS - Dynamic VLAN assignment - RADIUS Client
- Other: IEEE 802.3x flow control or HOL blocking prevention ( when flow control is off) - Port mirroring - Destination MAC filtering - Ingress/egress rate limiting - Broadcast storming control - 100 FX SFP support - Jumbo Frames - up to 10K
- Management Features: SSH - Telnet - Web-based configuration - CLI configuration - SNMP trap view - LLDP - Firmware upgrade by FTP and HTTP - Configuration backup/restore by FTP and HTTP - Factory reset - Password access control and restricted - IP access list - SNMPv1/
| Brand | |
|---|---|
| Brand | Allied Telesis |
| Power & Battery | |
|---|---|
| PoE Budget | 75 W |
| Power Source | Power Supply |
| Power Consumption | 25 W |
| Networking & Connectivity | |
|---|---|
| Network Technology | 100/1000Base-X |
| Layer Supported | 2 |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Total Number of Network Ports | 8 |
| PoE (RJ-45) Port | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Desktop |
| Appearance | |
|---|---|
| Modular | Yes |
| General Features | |
|---|---|
| Manageable | Yes |
| Manufacturer | Allied Telesis, Inc |
| Expansion Slots | |
|---|---|
| Total Number of Expansion Slots | 2.0 |
| Expansion Slot Type | SFP (mini-GBIC) |
| Number of SFP Slots | 2 |
| Misc Ports | |
|---|---|
| Port/Expansion Slot Details | 2 x Gigabit Ethernet Expansion Slot |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Optical Fiber |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
