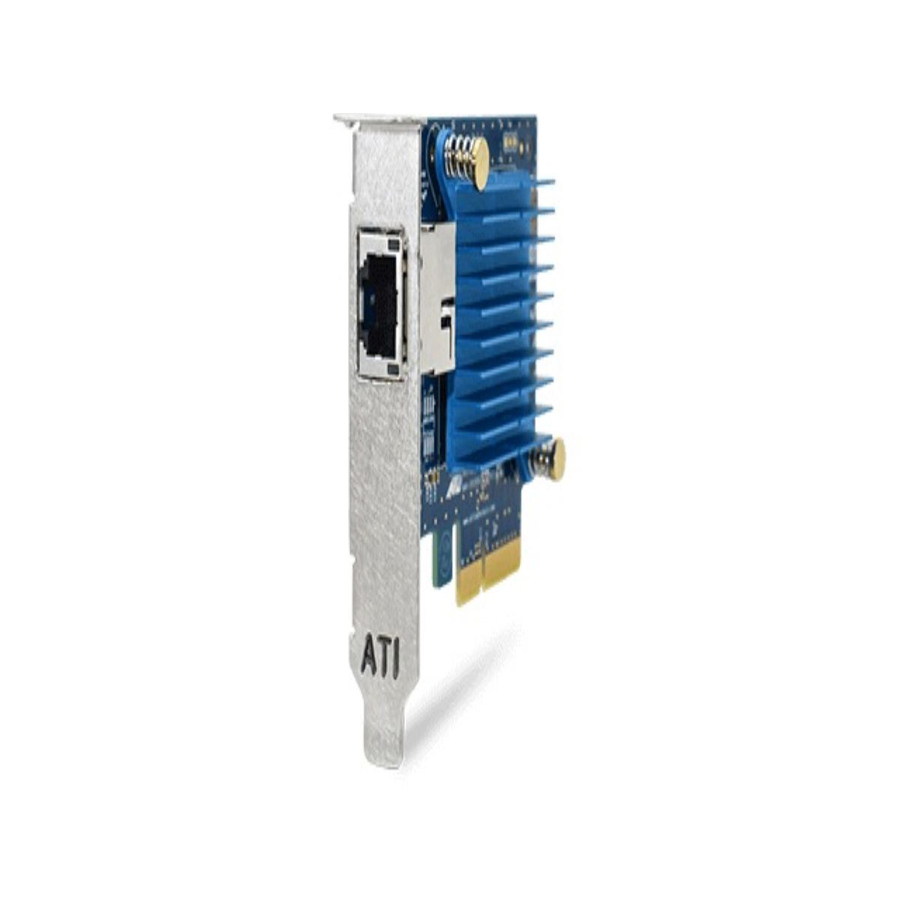

DNC10 Series
PCI-Express 10 Gigabit Network Adapter
Allied Telesis DNC10 Series 10 Gigabit PCI-Express Network Adapters provide the performance and bandwidth that today's high throughput applications need.
Power efficiency
The DNC10 Series features an energy-efficient Aquantia (Marvell) AQC10x Series chipset, which offers significantly reduced power consumption vs. comparable cards. This increased power efficiency (<2W at normal operation) helps minimize heat generated by the card, keeping the operating temperature to a minimum in your server or desktop device.
Network speed
With the rising strain on network resources due to large file transfers, multimedia content and an increase in network users, more bandwidth is required from the network. With up to 10Gbps bandwidth, these adapters allow for more data transfer at faster speeds. They are an ideal fit for your network.
Unique features
Each of the cards in this series has its own unique feature:
- DNC10T features Multi-Gig support (10/100/1G/2.5G/5G/10GT) for ultimate flexibility.
- DNC10SP supports 1G and 10G optics for future upgrade paths.
- DNC10LC has a fixed optic for enhanced physical security.
More bandwidth with PCIe
The PCI-Express (PCIe) design provides the maximum possible bandwidth and bus efficiency. Other benefits include WoL (Wake-On-Lan) capability and low power consumption.
Performance and reliability
Allied Telesis network adapters are validated over a variety of operating systems and platforms, ensuring compatibility. The DNC10 Series takes full advantage of the PCIe bus architecture to maximize network throughput.
- 10Gigabit Ethernet Card guarantees a replacement networking interface to client, server or workstation
- This 2000 MB/s bandwidth PCI Express x4 adapter ensures easy connectivity and plug-in form-factor for affordable and reliable Ethernet network
- Connect to a wired network with this single port network adapter for a hassle-free and quick response
- Supports cost-efficient twisted pair cables for speedy data transfer up to 100 meters
- With the 10GBase-T technology get up to 10Gbps data transfer rate over the twisted pair cable
| Brand | |
|---|---|
| Brand | Allied Telesis |
| Networking & Connectivity | |
|---|---|
| Network Technology | 10GBase-T |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| Size / Dimensions | |
|---|---|
| Form Factor | Plug-in Card |
| General Features | |
|---|---|
| Manufacturer | Allied Telesis, Inc |
| Misc Ports | |
|---|---|
| Total Number of Ports | 1 |
| Host Interface | PCI Express x4 |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
