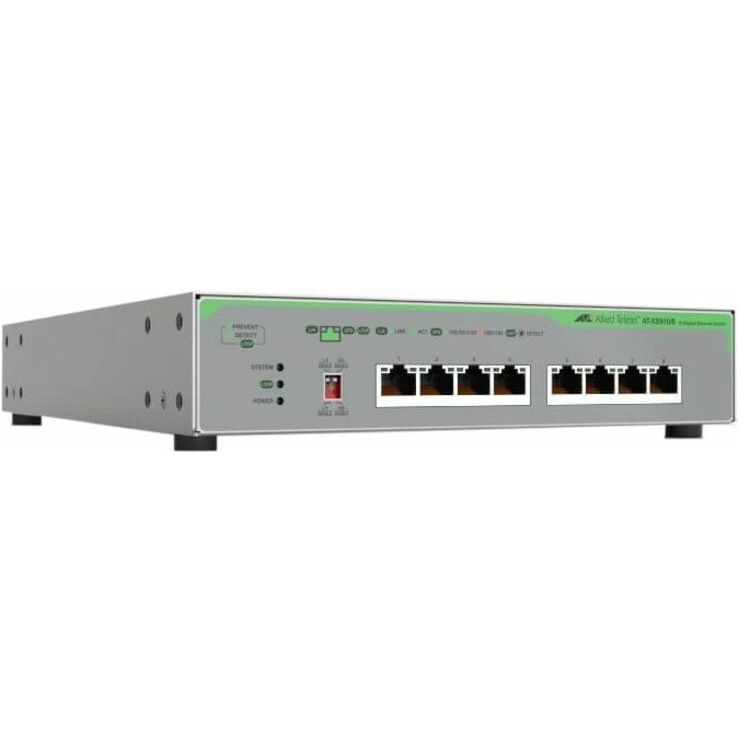

The Allied Telesis XS910/8 offers high-speed unmanaged switching solutions for small networks, with connectivity up to 10Gbps to support today's high-bandwidth interactive applications. A fanless, compact design provides silent operation for flexible deployment.
Overview
The XS910/8 unmanaged switch provides reliable and seamless connectivity at the edge of modern networks, with plug-and-play installation for easy deployment.
The XS910/8 features 8 x 100M/1/2.5/5/10G ports, and uses auto-negotiation to automatically optimize the link speed to maximize performance.
High speed
As technology advances, many IoT devices and a variety of content platforms delivering videos, images and sounds require more power at the edge of network. The XS910/8 delivers speeds of up to 10G to meet these growing demands.
Loop detection
The XS910/8 provides network loop detection by periodically sending Loop Detection Frames (LDF). If a loop is detected, the switch will automatically block the offending port to stop broadcast storms from affecting network performance. Once the loop is resolved, the port is unblocked.
Energy Efficient Ethernet
The XS910/8 switch is eco-friendly, supporting IEEE 802.3az Energy Efficiency Ethernet (EEE). When EEE is enabled, power consumption is reduced on ports with low activity. Not only does this help the planet by reducing the carbon footprint of each switch, it also lowers the Total Cost of Ownership (TCO) to the user, as the device costs less to run, and features improved reliability.
DIP switches
The XS910/8 has a set of DIP switches on the front panel, which simplify configuration by enabling users to easily enable or disable features such as Loop Guard and Energy Efficient Ethernet.
Flexible deployment
The XS910/8 switch is fanless, providing silent operation. A reliable steel chassis guarantees high endurance. Furthermore, its relatively compact design allows easy switch placement in work spaces and on desktops, with no interruption to network users.
- Effectively reduces downtime with improved network performance
- Features 8 networking ports to easily establish a local network or expand your existing one
- With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
- Compact form factor for added reliability and dependability
- The unmanaged switch provides a quick, easy and cost-saving way to add wired networking to your home, office or small business; no intervention needed
- Optimize the performance of business networks with 10 Gigabit Ethernet connectivity
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
| Brand | |
|---|---|
| Brand | Allied Telesis |
| Power & Battery | |
|---|---|
| Number of Power Supplies Supp | 1 |
| Number of Power Supplies Inst | 1 |
| Input Voltage | 230 V AC |
| Power Source | Power Supply |
| Networking & Connectivity | |
|---|---|
| Network Technology | 10GBase-T |
| Layer Supported | 2 |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Total Number of Network Ports | 8 |
| PoE (RJ-45) Port | No |
| Size / Dimensions | |
|---|---|
| Form Factor | Wall Mountable |
| General Features | |
|---|---|
| Manageable | No |
| Frequency | 63 Hz |
| Manufacturer | Allied Telesis, Inc |
| Misc Ports | |
|---|---|
| Stack Port | No |
| Port/Expansion Slot Details | 8 x 10 Gigabit Ethernet Network |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
