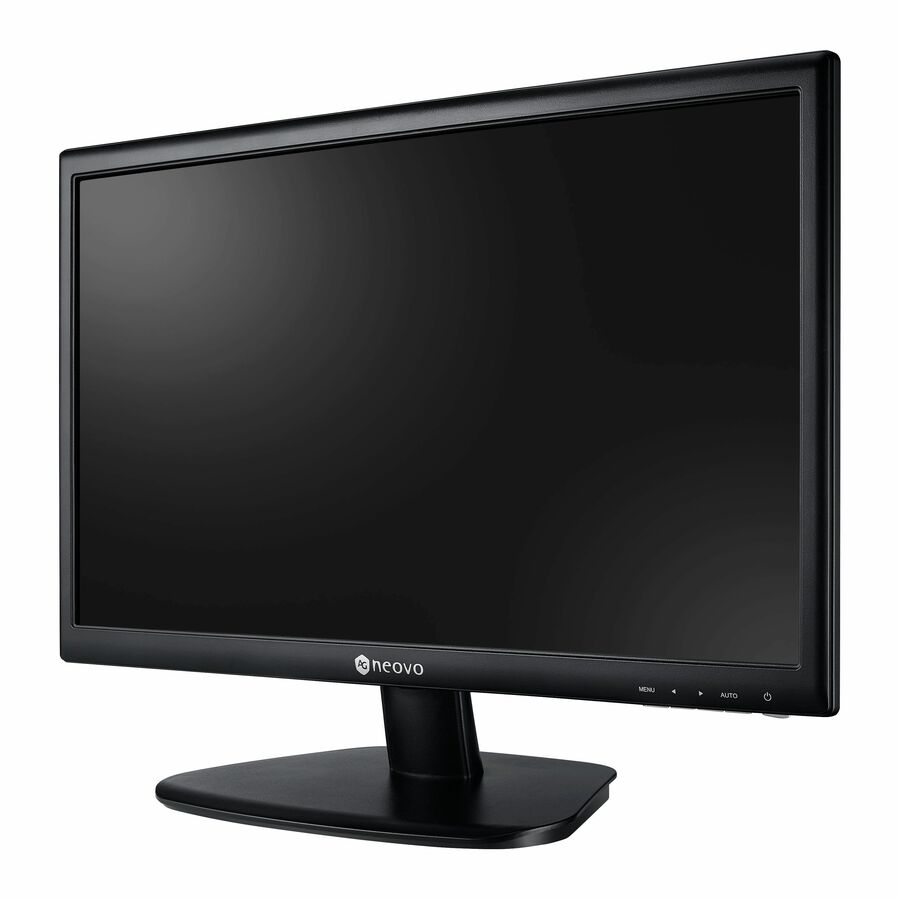

The SC-2202 22-inch video surveillance monitor with BNC connector is specifically designed for security operators - especially those with a 24/7 operation for efficient video monitoring. The SC-2202 provides value-added video enhancement controls that help create detailed images for low-light footage. Its optional monitor mounting solutions support single or multiple monitor setups. In terms of cost-to-performance, this model is the solution for productivity in modern operator workstations.
HIGHER COST PERFORMANCE
Designed with long-hour monitoring in mind, you can expect a reduction in system maintenance efforts and consequentially higher cost performance. The SC-2202 is commercial grade and meant to work 24/7, 365 days a year. Static images that would otherwise cause screen burn-in are gone with AG Neovo's patented Anti-Burn-in technology. Expect prolonged life for LCD screens.
VERSATILE CONNECTIVITY WITH BNC AND HDMI INPUTS
This 22-inch surveillance monitor with BNC Connector supports both analogue and digital video inputs. Easily connect to various video surveillance equipment with HDMI, VGA and BNC in/out ports. BNC port allows connecting CCTV cameras directly to the monitor. With this bezel less security monitor, there is no need for a DVR/converter to get straight to instant monitoring.
PERFECT MATCH TO CCTV IMAGES
There is a special pre-configured CCTV Mode that maximises image clarity in low-light footage. Quickly fine-tune your video footage with adjustments for sharpness, saturation, contrast, brightness, and more. Don't waste time testing and re-adjusting constantly, this product already has it all figured out!
ENHANCED GAMMA SELECTION
Offering an enhanced gamma selection makes for amazing visual optimization. Improve the light, shadow, and colour balance quality of your videos with ease.
MISSING DETAILS IN DARK SCENES IS A THING OF THE PAST
More detail from black-level adjustment means improved visibility of dark images.
MULTIPLE MONITOR SETUPS MADE EASY
With VESA 100 x 100mm, the SC-2202 is compatible with AG Neovo's mounting portfolio of desk and wall mounts. Whether you're looking for a dual, quad, or more monitor set-up, AG Neovo is a one-stop-shop for creating ergonomic workstations in a control room.
- Full HD 1920 x 1080 resolution
- Versatile connectivity: VGA, HDMI, Composite (BNC) inputs
- Composite (BNC) passive loop-through output port
- Quick Image settings: CCTV Mode, Gamma Selection, Black-level Adjustment, Contrast Enhancer
- Designed and developed for continuous 24/7 operation
| Brand | |
|---|---|
| Brand | AG Neovo Technology Corporation |
| GPU / Graphics | |
|---|---|
| Number of Screens | 1 |
| Screen / Display | |
|---|---|
| Dynamic Contrast Ratio | 000 , 000:1 , 20 |
| Screen Size Class | 22" |
| Viewable Screen Size | 21.5" |
| Backlight Technology | LED |
| Horizontal Frequency | 30 kHz to 85 kHz |
| Vertical Frequency | 48 Hz to 75 Hz |
| Maximum Resolution | 1920 x 1080 |
| Screen Mode | Full HD |
| Panel Technology | Twisted nematic (TN) |
| Brightness | 250 Nit |
| Response Time | 3 ms |
| Standard Refresh Rate | 75 Hz |
| Color Supported | 16.7 Million Colors |
| Horizontal Viewing Angle | 170° |
| Vertical Viewing Angle | 160° |
| Pixel Pitch | 0.24800 mm x 0.24800 mm |
| Power & Battery | |
|---|---|
| Operating Power Consumption | 16 W |
| HDMI Ports | |
|---|---|
| HDMI | Yes |
| Total Number of HDMI Ports | 1 |
| Number of HDMI Inputs | 1 |
| Audio | |
|---|---|
| Speakers | Yes |
| Number of Speakers | 2 |
| Size / Dimensions | |
|---|---|
| Weight with Stand (Approximat | 7.05 lb |
| Height with Stand | 14.85" |
| Depth with Stand | 6.69" |
| Width with Stand | 20.13" |
| VESA Mount Compatible | Yes |
| VESA Mount Standard | 100 x 100 |
| Mount Type | Desk Mountable |
| Appearance | |
|---|---|
| Stand Adjustments | Tilt |
| General Features | |
|---|---|
| Frequency | 60 Hz |
| Operation Hours | 24 Hours/7 Days |
| Manufacturer | AG Neovo Technology Corporation |
| Video Ports | |
|---|---|
| VGA | Yes |
| Number of VGA Ports | 1 |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
| Miscellaneous | |
|---|---|
| Product Name | SC-2202 22-Inch Video Surveillance Monitor With BNC |
