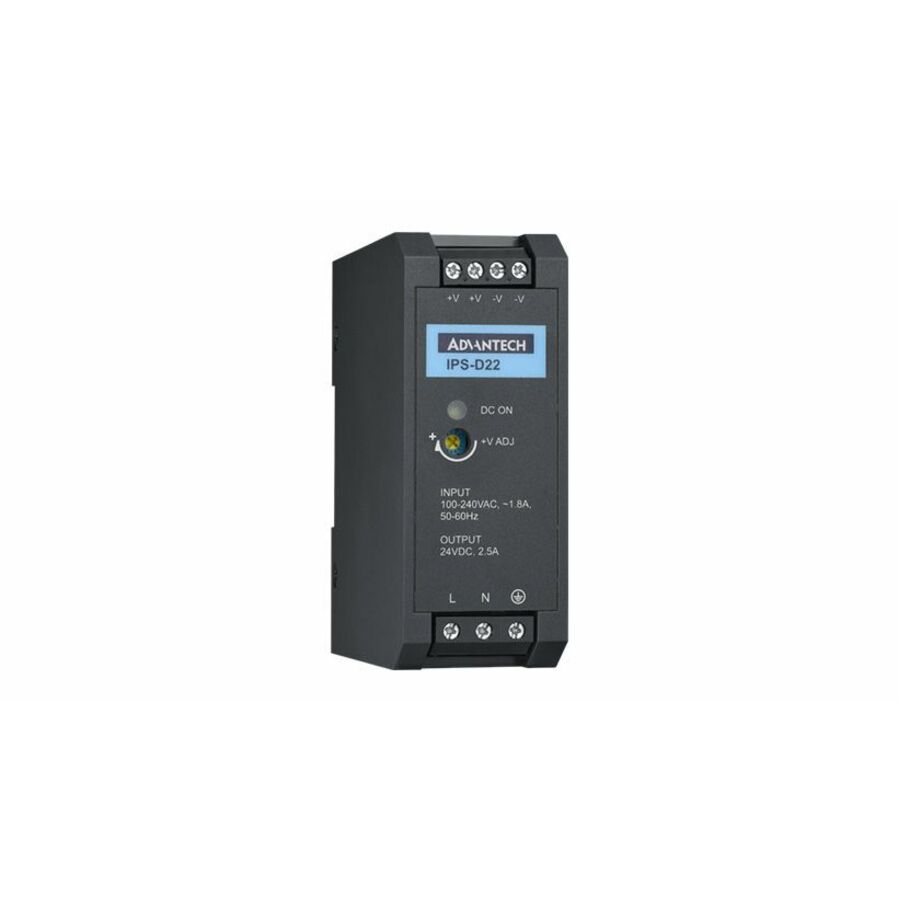

Advantech IPS-D22A60W 60W Power Supply

$ 44.99 $ 44.99
$ 44.99

$ 44.99 / Units
  • Brand
  • Depth
  • Weight (Approximate)
  • Height
  • Product Name
  • Brand Name
  • Manufacturer Part Number
  • Width
  • Input Frequency
  • Features
  • Protection Type
  • Form Factor
  • Maximum Operating Temperature
  • Minimum Operating Temperature
  • Input Voltage
  • Output Voltage
  • Output Current
  • Efficiency
  • Output Voltage Detail
  • MTBF
  • Environmental Compliance
  • Certifications & Standards
  • Limited Warranty
  • Manufacturer
  • Product Type
  • Product Series
  • Manufacturer Website Address
  • Output Power
Add to cart
Buy now
Add to wishlist
This product is eligible for 30-day returns. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days
Contact Us
  • Compact design with 60 watt output
  • Input range: 85 ~ 264 VAC/100 ~ 375 VDC
  • Wide Operating Temperature -20-70 °C with full load up to 50 °C
  • Cold start at -30 °C
  • High efficiency up to 88% @ 230VAC
  • Supports OVP/SCP/OCP/OTP
  • LED indicator for DC OK
Brand
Brand Advantech Co.
Power & Battery
Input Frequency 47 ~ 63 Hz
Input Voltage 230 V AC
Output Voltage 24 V DC
Output Current 2.50 A
Efficiency 88%
Output Voltage Detail 24 V DC @ 2.5 A
Output Power 60 W
Size / Dimensions
Form Factor DIN Rail Mountable
General Features
Protection Type Over Temperature
MTBF 500000 Hour
Manufacturer Advantech Co., Ltd
Compliance & Certification
Maximum Operating Temperature 158°F (70°C)
Minimum Operating Temperature -4°F (-20°C)
