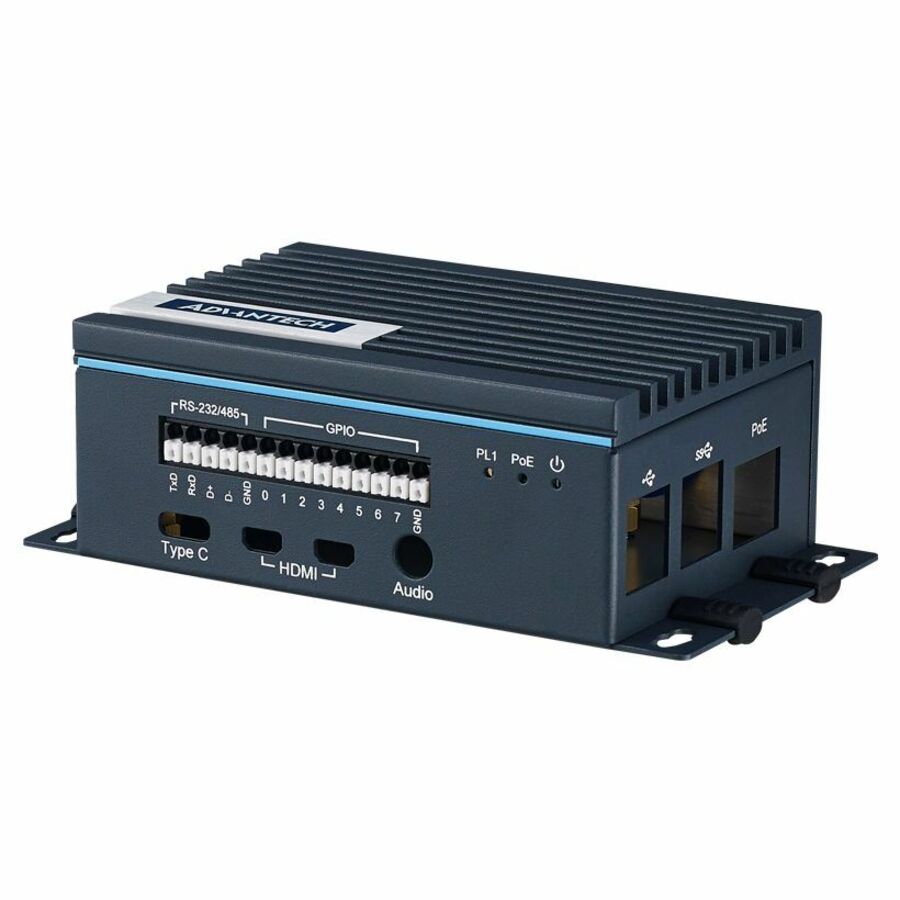

Advantech Industrial Raspberry Pi 4 Gateway Kit with POE function

$ 204.99 $ 204.99
$ 204.99

$ 204.99 / Units
  • Brand
  • Power Plug Type
  • Weight (Approximate)
  • Product Name
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Recommended Usage
  • Maximum Relative Humidity (No
  • Connectivity Technology
  • PoE (RJ-45) Port
  • Number of PoE (RJ-45) Ports
  • Connector Type
  • Form Factor
  • Material Details
  • Dimensions
  • Mount Surface
  • Ethernet Technology
  • Maximum Operating Temperature
  • Minimum Operating Temperature
  • Maximum Storage Temperature
  • Minimum Storage Temperature
  • Input Voltage
  • Operating System Supported
  • Environmental Compliance
  • Ingress Protection Rating
  • Country of Origin
  • Package Contents
  • Manufacturer
  • Product Type
  • Manufacturer Website Address
Add to cart
Buy now
Add to wishlist
This product is eligible for 30-day returns. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days
Contact Us

UNO-220 is designed for customers using Raspberry Pi 4 (RPi 4) single-board computers (SBCs) in IoT applications. Featuring a system-image OS equipped micro SD card, an RPi 4 HAT I/O board, additional RS-232/485 GPIOs, and an RTC battery backup for precise time keeping; the UNO-220 industrial-grade chassis transforms RPi 4 into a more ruggedized gateway ideal for rapid prototyping in shop floor environment.

  • Protect your Raspberry Pi device from dust and temperature extremes.
  • Industrial-grade gateway kit provides Raspberry Pi-ready solutions for rapid prototyping
  • Industrial grade I/O board for RS-232/485 and GPIO extension
  • Integrated with PoE funciton allows users to power Raspberry Pi4 via an Ethernet cable
  • Battery-backed RTC enabling fail-safe time keeping
  • Built-in TPM function provides robust protection for critical data
  • Included OS enables RPi identification of UNO-220, and automatically configures GPIOs and drivers for the board
  • Supports wall-mount and DIN rail installation for industrial applications
  • LED indicator for more easier mentanence
Brand
Brand Advantech Co.
Power & Battery
Power Plug Type Type C
Input Voltage 5 V DC
Networking & Connectivity
Connectivity Technology Wired
Ethernet Port
PoE (RJ-45) Port Yes
Number of PoE (RJ-45) Ports 1
Size / Dimensions
Form Factor Stand Mount
Mount Surface Wall
General Features
Recommended Usage Commercial
Manufacturer Advantech Co., Ltd
Cables
Connector Type Micro HDMI
Compliance & Certification
Maximum Relative Humidity (No 95%
Maximum Operating Temperature 122°F (50°C)
Minimum Operating Temperature 32°F (0°C)
Maximum Storage Temperature 140°F (60°C)
Minimum Storage Temperature -4°F (-20°C)
Ingress Protection Rating IP40
