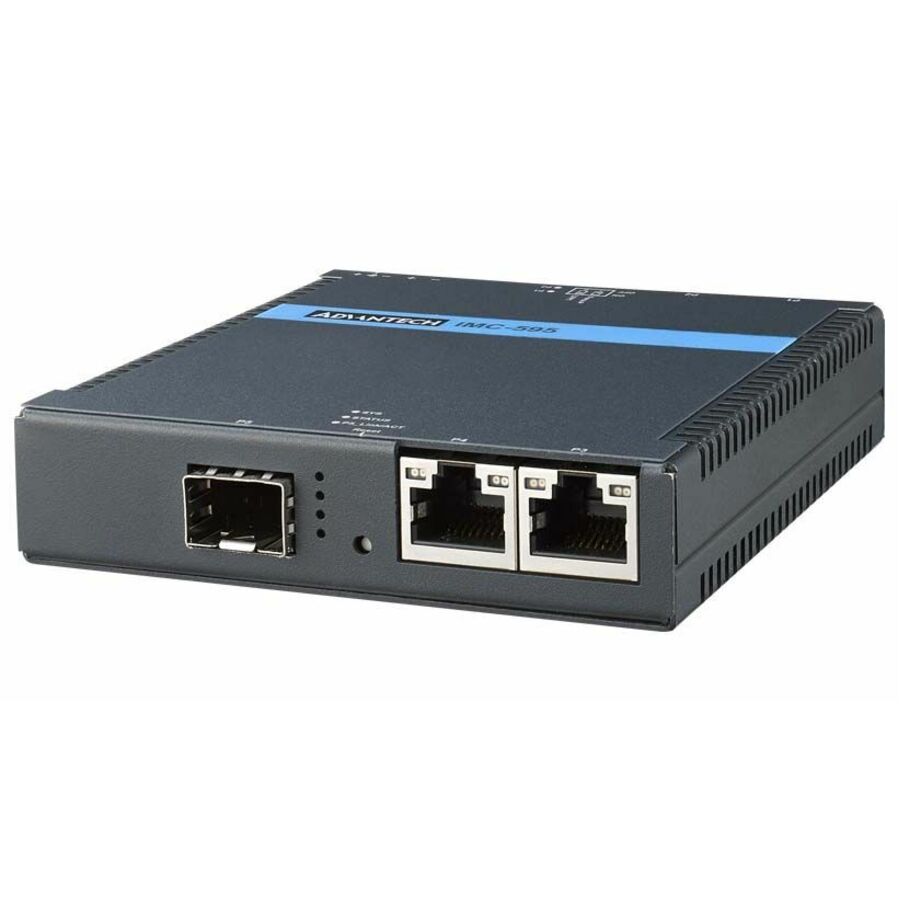

Advantech's IMC-595MPI three-in-one mega PoE media converter is a compact, industrial grade solution that can serve as a fiber-to-Ethernet media converter, a 90W*2 PoE injector and a light management Ethernet switch.
It supports Link Fault Pass Through(LFPT) and Force-Power functionality. It also allows flexible topology by switching from injector mode to switch mode. Therefore it is best fit used in harsh environment which needs slight network deployment changes.
- Versatile 5-port, up to 180W power output media converter at extended temperature
- Supports Switch/Injector mode setting by SNMP/iView
- Supports SNMP/iView for remote management
- Dip switch for LFPT and Power Force mode
- Supports LLDP
- Supports Jumbo Frames up to 9,216 bytes
- Supports Modbus Tcp
- Supports Broadcast Storm Control ON/OFF
| Brand | |
|---|---|
| Brand | Advantech Co. |
| Power & Battery | |
|---|---|
| Power Source | Power Supply |
| Power Consumption | 182 W |
| Networking & Connectivity | |
|---|---|
| Network Technology | 10/100/1000Base-T |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 4 |
| Network (RJ-45) | Yes |
| Number of PoE (RJ-45) Ports | 2 |
| Size / Dimensions | |
|---|---|
| Form Factor | Compact |
| General Features | |
|---|---|
| Maximum Data Transfer Rate | 1000 Mbit/s |
| Manufacturer | Advantech Co., Ltd |
| Expansion Slots | |
|---|---|
| Total Number of Expansion Slots | 1 |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 1 |
| Misc Ports | |
|---|---|
| Total Number of Ports | 4 |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Optical Fiber |
