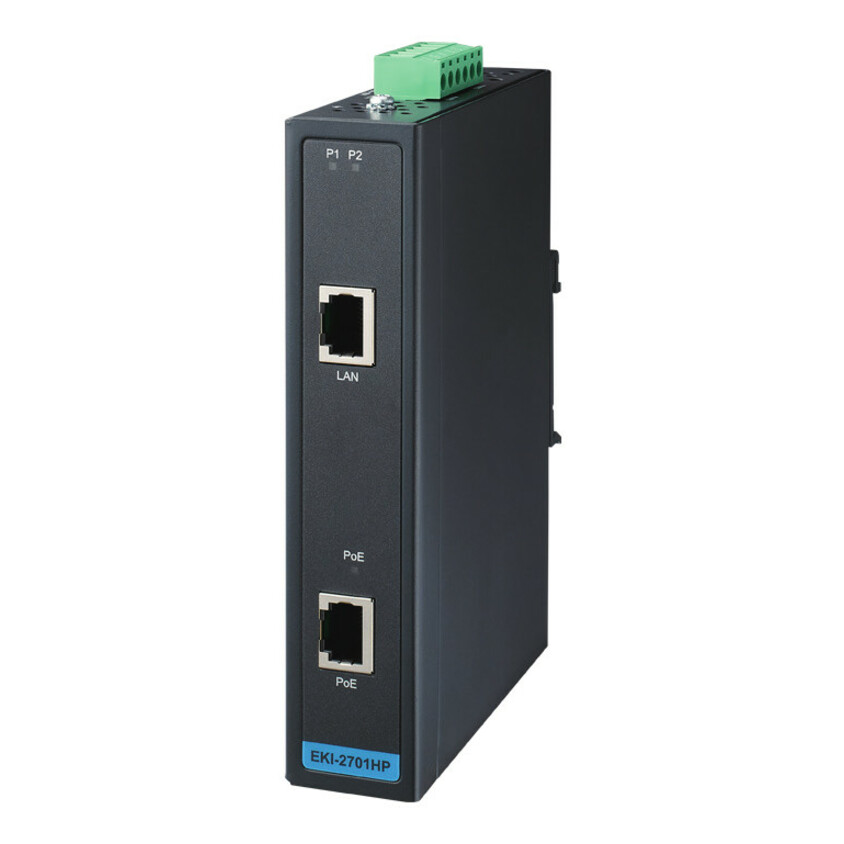

With the technology of PoE (Power over Ethernet), we can transfer both data and electrical power to Ethernet-enabled devices using a standard CAT5 cable. EKI-2701HP/EKI-2701HPI is compliant IEEE 802.3af/at and inject 30W for PD device. This product supports wide power input range between 24 to 48 VDC.
- Supports 10/100/1000Base-T (X) for PoE+ OUT and Data IN
- IEEE 802.3af/at compliant, supports a full 30 watt output
- Power input (24 ~ 48 VDC), inject 30 W for each port
- Provides slim size and DIN-rail/Wall mount with IP30 metal mechanism
| Brand | |
|---|---|
| Brand | Advantech Co. |
| Power & Battery | |
|---|---|
| Input Voltage | 48 V DC |
| Maximum Output Voltage | 55 V DC |
| Maximum Output Power | 30 W |
| Size / Dimensions | |
|---|---|
| Form Factor | DIN Rail/Wall Mountable |
| General Features | |
|---|---|
| Protection Type | Overload Protection |
| Manufacturer | Advantech Co., Ltd |
| Misc Ports | |
|---|---|
| Output Ports | 1 x PoE+ |
| Input Ports | 1 x 10/100/1000TX |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
