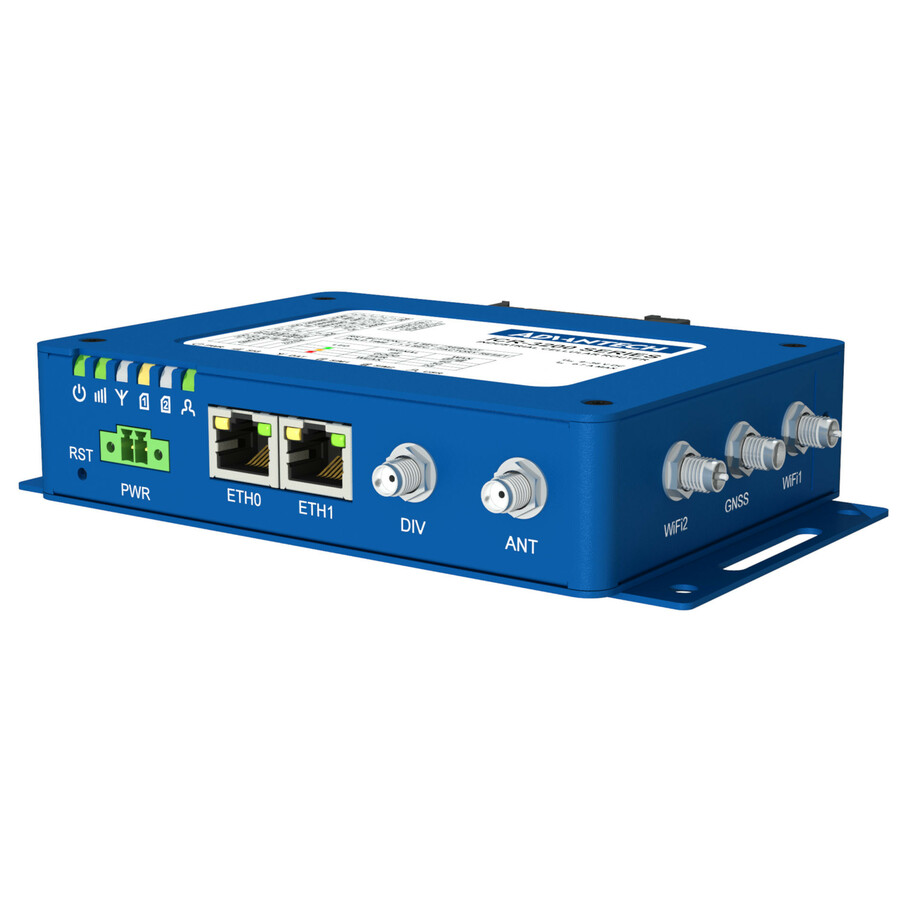

The ICR-3200 LTE gateway is the perfect way to connect IP or serial devices to a cellular network. Industrial M2M and IoT applications include kiosks, industrial PCs, HMIs, traffic controllers, meters, UPS systems, and much more.
With LTE Cat.4 upload speeds of up to 50 Mbps and download speeds of up to 150 Mbps, the router provides ample bandwidth for high data demand applications such as CCTV or public Wi-Fi hotspots.
In addition to its two independent or switched Ethernet ports, serial ports RS232 and RS485, ICR-3200 has built-in digital I/O connectivity, backup real-time clock and sleep mode support. The device has two SIM readers protected by metallic cover for carrier failover redundancy. As an addition the router is ready to use internal eSIM.
Optional built-in GNSS chipset provides information about the accurate position of the router. An optional built-in Wi-Fi and Bluetooth v5.1 module (class 1) are also available. WiFi with 802.11a,b,g,n,ac modes, and MU-MIMO support is appropriate for on-board Wi-Fi transport applications.
The router supports VPN tunnel creation using various protocols to ensure safe communications. The router provides diagnostic functions which include automatic monitoring of the wireless and wired connections, automatic restart in case of connection losses, and a hardware watchdog that monitors the router status.
- Sleep mode & Power ignition & Backup real time clock
- Operational temperature range from -40 °C to +75 °C
- Optional GNSS receiver
- Robust metal cover with DIN and Wall mount options
- Optional Wi-Fi 802.11ac using MU-MIMO technology
- 2� Ethernet 10/100, 1x RS232, 1x RS485 and I/O
- Powerful CPU with 1.3 GB storage to host customer SW applications
- 2� SIM with cover, Dual SIM + eSIM
- Carriers support; Verizon, AT&T, T-Mobile, FirstNet (Public Safety)
- 4G LTE Cat.4 VPN Gateway for Industrial IoT applications
| Brand | |
|---|---|
| Brand | Advantech Co. |
| Networking & Connectivity | |
|---|---|
| Broadband Transmission Techno | Cellular |
| Cellular Data Connectivity Te | LTE |
| Wi-Fi Generation | Wi-Fi 5 |
| Cellular Generation | 4G |
| Cellular Network Supported | WCDMA 1900 |
| ISM Band | Yes |
| ISM Maximum Frequency | 2.40 GHz |
| UNII Band | Yes |
| UNII Maximum Frequency | 5 GHz |
| VPN Supported | Yes |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 2 |
| Size / Dimensions | |
|---|---|
| Form Factor | Wall Mountable |
| General Features | |
|---|---|
| Manufacturer | Advantech Co., Ltd |
| Telephony | |
|---|---|
| Multi-SIM Supported | Yes |
| Number of SIM Card Supported | 2 |
| SIM Size Supported | Mini/eSim |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
