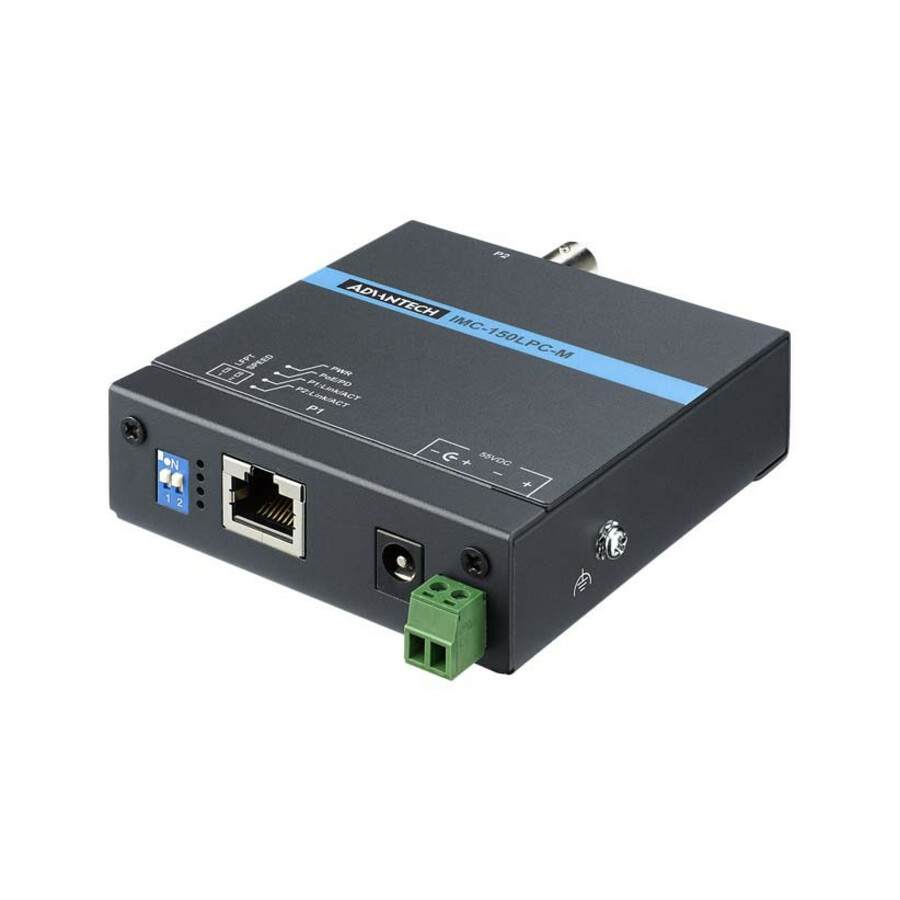

Advantech's IMC-150LPC-M and IMC-150LPC-R are designed to be used as a pair. IMC-150LPC-M is designed for use at a central site while IMC 150LPC-R is used at a remote site. Both devices are capable of extending data and power transmission by >15.4W at 300 m (985 ft) using extant coaxial cables. Indeed, this solution converts analogue cables into Ethernet connection cables while saving on installation/digitalization costs. IMC-150LPC-M and IMC-150LPC-R further support PD power-off via a management switch to enable users to control the unit remotely. This series is compliant with EN50121-4 standards for trackside installation and is capable of withstanding electromagnetic interference for rail networks.
- Delivers data up to 300 m (985 ft) at 100Mbps with power via coaxial cable
- Extends power >15.4 watt power with 300 m (985 ft) long coaxial cable
- Railway Trackside EN 50121-4 EMC certified
- Features copper-based Link Fault Pass Through (LFPT)
- Supports Remote PD power ON/OFF by disabling/enabling port via management switch
| Brand | |
|---|---|
| Brand | Advantech Co. |
| Power & Battery | |
|---|---|
| Input Voltage | 57 V DC |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| Network (RJ-45) | Yes |
| General Features | |
|---|---|
| Maximum Data Transfer Rate | 12.50 MB/s |
| Maximum Extended Range | 984.25 ft |
| Manufacturer | Advantech Co., Ltd |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
