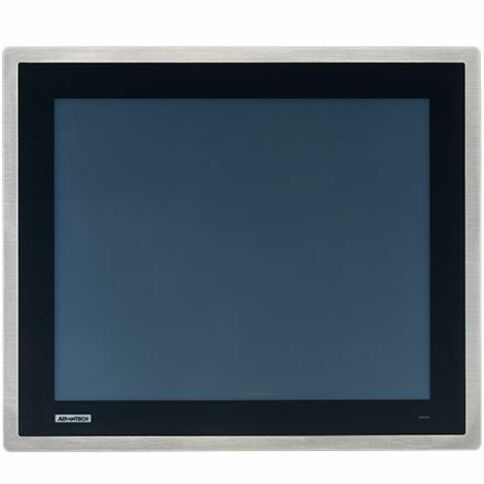

The FPM-800S series are rugged industrial monitors that support a wide operating temperature range (-20 ~ 60 °C/-4 ~ 140 °F), making them suitable for diverse applications. The true-flat front panel is IP66 rated for protection from water and dust to ensure easy cleaning. With the provision of a 304 stainless steel front bezel, FPM-800S is especially suitable for operation in hazardous and strict hygiene environments.
- 17" SXGA TFT LED LCD with 50K backlight lifetime
- Robust design with 304 stainless steel front bezel and anti-rust coated SPCC rear cover
- Wide operating temperature range (-20 ~ 60 °C/-4 ~ 140 °F)
- Increased reliability with enhanced 5-wire resistive touch sensor
- Anti-glare screen with tempered glass and IP66-certified front panel
- Direct VGA+DP video input interface
- OSD control pad with lockable function on rear panel
- Supports panel, VESA, wall, desktop, and stand mounting
| Brand | |
|---|---|
| Brand | Advantech Co. |
| Screen / Display | |
|---|---|
| Screen Size Class | 17" |
| Viewable Screen Size | 17" |
| Touchscreen Type | 5-wire Resistive |
| Backlight Technology | LED |
| Maximum Resolution | 1280 x 1024 |
| Screen Mode | SXGA |
| Panel Technology | Thin Film Transistor (TFT) |
| Brightness | 350 Nit |
| Color Supported | 16.7 Million Colors |
| Horizontal Viewing Angle | 160° |
| Vertical Viewing Angle | 140° |
| Native Contrast Ratio | 800:1 |
| USB Ports | |
|---|---|
| USB | Yes |
| DisplayPort | |
|---|---|
| DisplayPort | Yes |
| Size / Dimensions | |
|---|---|
| VESA Mount Compatible | Yes |
| Mount Type | Stand Mountable |
| General Features | |
|---|---|
| Manufacturer | Advantech Co., Ltd |
| Video Ports | |
|---|---|
| VGA | Yes |
| Compliance & Certification | |
|---|---|
| Operating Temperature Range | -4°F (-20°C) to 140°F (60°C) |
| Ingress Protection (IP) Rating | IP66 |
| Miscellaneous | |
|---|---|
| Product Name | FPM-817S-R6AE Widescreen Touchscreen LED Monitor |
