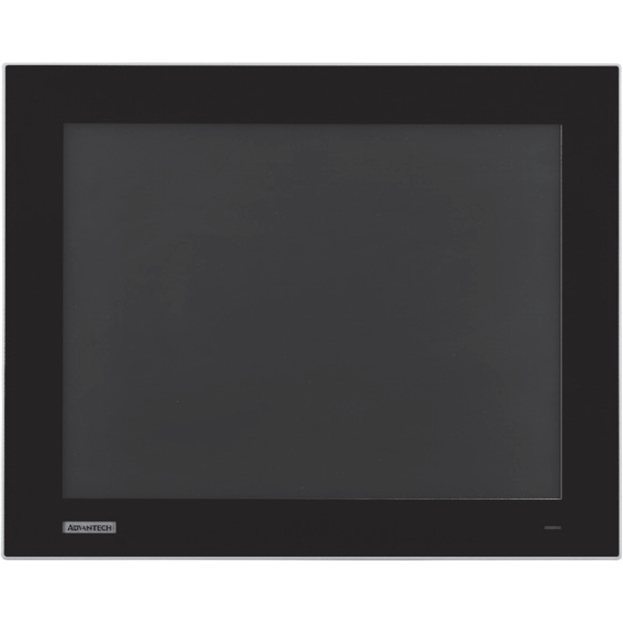

In IIoT and Industry 4.0, more and more customers need data to be visualized to help process management and decision making. The FPM-200 series is an industrial-grade monitor with sleek, simple lines and a true-flat touchscreen. Equipped with durable resistive touch control and an IP66-rated front bezel, FPM-200 series is designed for intuitive operation in industrial environments such as smart factory and machine automation display applications.
- 12" XGA/17" SXGA TFT LED LCD with 50,000 backlight lifetime15" XGA TFT LED LCD with 70,000 backlight lifetime
- Direct HDMI, DP and VGA input interfaces
- Anti-glare screen with tempered glass
- Robust system with Die-casting aluminum chassis and IP66-rated aluminum
- alloy front bezel
- Lockable I/O connectors
- Slim design enables easy installation
- Supports various mount options: panel, desktop, and VESA arm
| Brand | |
|---|---|
| Brand | Advantech Co. |
| Screen / Display | |
|---|---|
| Native Contrast Ratio | 000:1 , 1 |
| Screen Size Class | 12" |
| Viewable Screen Size | 12" |
| Touchscreen Type | 5-wire Resistive |
| Backlight Technology | LED |
| Maximum Resolution | 1024 x 768 |
| Screen Mode | XGA |
| Brightness | 600 Nit |
| Color Supported | 16.2 Million Colors |
| Horizontal Viewing Angle | 178° |
| Vertical Viewing Angle | 178° |
| Power & Battery | |
|---|---|
| Operating Power Consumption | 36 W |
| USB Ports | |
|---|---|
| USB | Yes |
| HDMI Ports | |
|---|---|
| HDMI | Yes |
| Size / Dimensions | |
|---|---|
| VESA Mount Compatible | Yes |
| VESA Mount Standard | 75 x 75 |
| Mount Type | Desk Mountable |
| General Features | |
|---|---|
| Manufacturer | Advantech Co., Ltd |
| Video Ports | |
|---|---|
| VGA | Yes |
| Miscellaneous | |
|---|---|
| Product Name | 12" XGA Ind Monitor w/Resistive TS |
