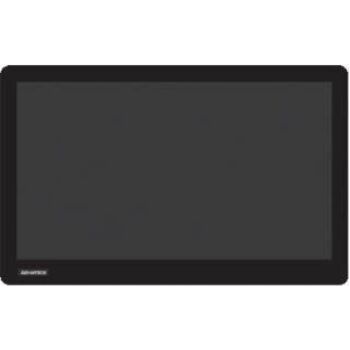

Advantech FPM-121W-P7AE 22" Class LED Touchscreen Monitor

$ 764.99 $ 764.99
$ 764.99

$ 764.99 / Units
  • Brand
  • Depth
  • Weight (Approximate)
  • Height
  • Product Name
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Width
  • Number of Simultaneous Touchp
  • Screen Size Class
  • Viewable Screen Size
  • Multi-touch Screen
  • Touchscreen Type
  • Backlight Technology
  • Built-in Devices
  • USB
  • Number of USB Ports
  • HDMI
  • Total Number of HDMI Ports
  • DisplayPort
  • Number of DisplayPorts
  • VESA Mount Compatible
  • VESA Mount Standard
  • Mount Type
  • Maximum Resolution
  • Screen Mode
  • Panel Technology
  • Brightness
  • Color Supported
  • Horizontal Viewing Angle
  • Vertical Viewing Angle
  • Native Contrast Ratio
  • Operating Temperature Range
  • Manufacturer
  • Product Type
  • Product Series
  • Product Model
  • Manufacturer Website Address
  • Maximum Power Consumption
Add to cart
Buy now
Add to wishlist
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Contact Us
Documents
Manufacturer-Brochure PDF

In IIoT and Industry 4.0 era, more and more customers need data to be visualized to benefit process management and decision making. The FPM-100W series is a semi-industrialgrade monitor which provides vivid images and intuitive multi-touch functionalities. Along with its slim and compact design, FPM-100W series is suitable to be placed everywhere that both information display and human interactions are required to increase the production efficiency

  • 15.6"/21.5" Full HD TFT LED LCD Display
  • Built in 10-point PCAP multi-touch panel with USB interface
  • Slim bezel & compact Design
  • Wide operating temperature from 0 to 50° C
  • Support VESA arm mounting (100 x 100mm)
Brand
Brand Advantech Co.
Screen / Display
Native Contrast Ratio 000:1 , 1
Screen Size Class 22"
Viewable Screen Size 21.5"
Multi-touch Screen Yes
Touchscreen Type Projected Capacitive
Backlight Technology LED
Maximum Resolution 1920 x 1080
Screen Mode Full HD
Panel Technology Thin Film Transistor (TFT)
Brightness 250 Nit
Color Supported 16.7 Million Colors
Horizontal Viewing Angle 178°
Vertical Viewing Angle 178°
Power & Battery
Maximum Power Consumption 15 W
USB Ports
USB Yes
Number of USB Ports 3
HDMI Ports
HDMI Yes
Total Number of HDMI Ports 1
DisplayPort
DisplayPort Yes
Number of DisplayPorts 1
Input Devices
Number of Simultaneous Touchp 10
Size / Dimensions
VESA Mount Compatible Yes
VESA Mount Standard 100 x 100
Mount Type Bracket-mountable
General Features
Built-in Devices USB Hub
Manufacturer Advantech Co., Ltd
Compliance & Certification
Operating Temperature Range 32°F (0°C) to 122°F (50°C)
Miscellaneous
Product Name FPM-121W-P7AE Touchscreen LED Monitor
