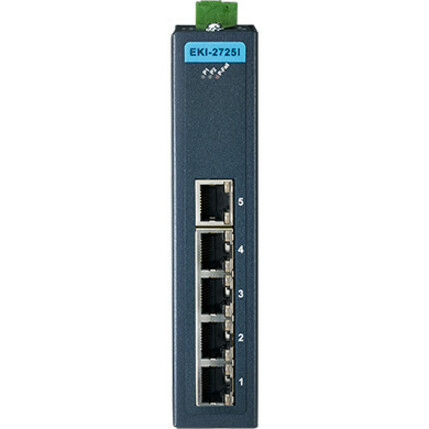

The EKI-2725 supports Gigabit Ethernet. The power is a +12 ~ 48 V DC redundant input design, and is secured with a double protection mechanism: Power Polarity Reverse Protect and an Overload Current Fuse. The former tolerates reverse power wiring while the later secures the system from overload currents. Each port of EKI-2725 has 2 LED's to show the link status transmission speed and collision status. It also provides a relay output for an event alarm. In the event of a power failure, the built-in LED will activate the alarm to notify administrators. Engineers can simply verify the hardware status by checking the LED, and have troubleshooting easy and quick. EKI-2725 comes with compact metal housing that rates IP30 to help against from dusty industrial environments.
- Effectively increases available bandwidth on your network
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 5 ports
- With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
- DIN Rail Mountable form factor for added reliability and dependability
- The unmanaged switch provides a quick, easy and cost-saving way to add wired networking to your home, office or small business; no intervention needed
- Gigabit Ethernet port for ultra-fast network speeds
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
| Brand | |
|---|---|
| Brand | Advantech Co. |
| Networking & Connectivity | |
|---|---|
| Network Technology | 10/100/1000Base-T |
| Layer Supported | 2 |
| Ethernet Port | |
|---|---|
| Total Number of Network Ports | 5 |
| Uplink Port | No |
| Size / Dimensions | |
|---|---|
| Form Factor | Wall Mountable |
| Appearance | |
|---|---|
| Modular | No |
| General Features | |
|---|---|
| Manageable | No |
| Manufacturer | Advantech Co., Ltd |
| Misc Ports | |
|---|---|
| Stack Port | No |
| Port/Expansion Slot Details | 5 x Gigabit Ethernet Network |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
