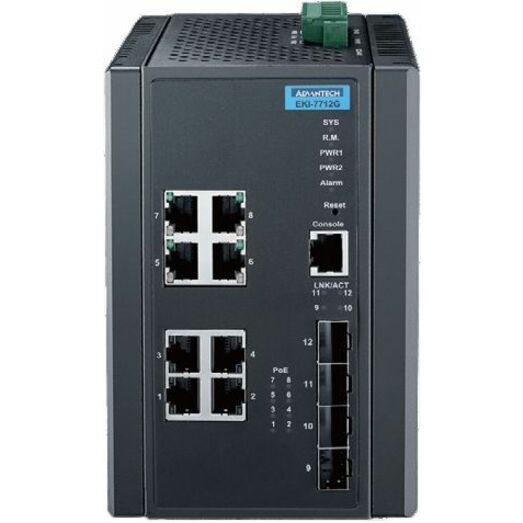

Advantech EKI-7712G-4FMPI Ethernet Switch

$ 2,209.99 $ 2,209.99
$ 2,209.99

$ 2,209.99 / Units
  • Brand
  • Depth
  • Weight (Approximate)
  • Height
  • Product Name
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Width
  • Redundant Power Supply Suppor
  • Network Technology
  • Manageable
  • Features
  • Network (RJ-45)
  • Total Number of Network Ports
  • PoE (RJ-45) Port
  • Total Number of Expansion Slots
  • Expansion Slot Type
  • Number of SFP Slots
  • Port/Expansion Slot Details
  • Plug/Connector Type
  • Form Factor
  • Product Material
  • Maximum Data Transfer Rate
  • Ethernet Technology
  • Networking Standards
  • Layer Supported
  • PoE Budget
  • Media Type Supported
  • Input Voltage
  • MTBF
  • Environmental Compliance
  • Limited Warranty
  • Manufacturer
  • Product Type
  • Product Series
  • Product Model
  • Application/Usage
  • Manufacturer Website Address
  • Power Source
  • Power Consumption
Add to cart
Buy now
Add to wishlist
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Contact Us

The EKI-7712G-4FMPI is a next generation PoE switch which supports IEEE 802.3bt Class 8 90W PoE for high-powered application. Combined with 6 x IEEE 802.3af/at PoE Gigabit ports, 2 x IEEE 802.3bt PoE Gigabit ports, and 4 x SFP ports, EKI-7712G-4FMPI provides multiple usages for different scenarios. The EKI-7712G-4FMPI is embedded with Advantech's IXM function, which can benefit users with fast deployment and can save considerably engineering time and costs. It also supports NMS to help IT managers with networking maintenance and failure prevention. It is also equipped with X-Ring Pro, which can achieve ultra-high-speed recovery times of <20 ms to ensure network stability.

  • 8 x Gigabit Ethernet ports + 4 x SFP ports
  • Support 2 IEEE 802.3bt class 8 90W and 6 IEEE 802.3af/at PoE ports
  • Redundancy: X-Ring Pro (ultra-high-speed recovery time,
  • IXM function for fast deployment
  • Security Pack with 802.1X, ACL, RADIUS, TACACS+, MAB Authentication, SNMPv3, HTTPS, SSH, and SFTP
  • Management: SNMP v1/v2c/v3, WEB, Telnet, standard MIB, private MIB
  • Supports NMS for easy and visualized to monitor and manage network remotely
  • Dual 53 ~ 57 VDC power inputs and 1 x relay output
Brand
Brand Advantech Co.
Power & Battery
Redundant Power Supply Suppor Yes
Plug/Connector Type Terminal Block
PoE Budget 370 W
Input Voltage 57 V DC
Power Source DC
Power Consumption 12 W
Networking & Connectivity
Network Technology 1000Base-X
Layer Supported 2
Ethernet Port
Network (RJ-45) Yes
Total Number of Network Ports 8
PoE (RJ-45) Port Yes
Size / Dimensions
Form Factor DIN Rail Mountable
General Features
Manageable Yes
Maximum Data Transfer Rate 128 MB/s
MTBF 992320 Hour
Manufacturer Advantech Co., Ltd
Expansion Slots
Total Number of Expansion Slots 4
Expansion Slot Type SFP (mini-GBIC)
Number of SFP Slots 4
Misc Ports
Port/Expansion Slot Details 4 x Gigabit Ethernet SFP Expansion Slot
Printer/Scanner/Fax Specs
Media Type Supported Optical Fiber
