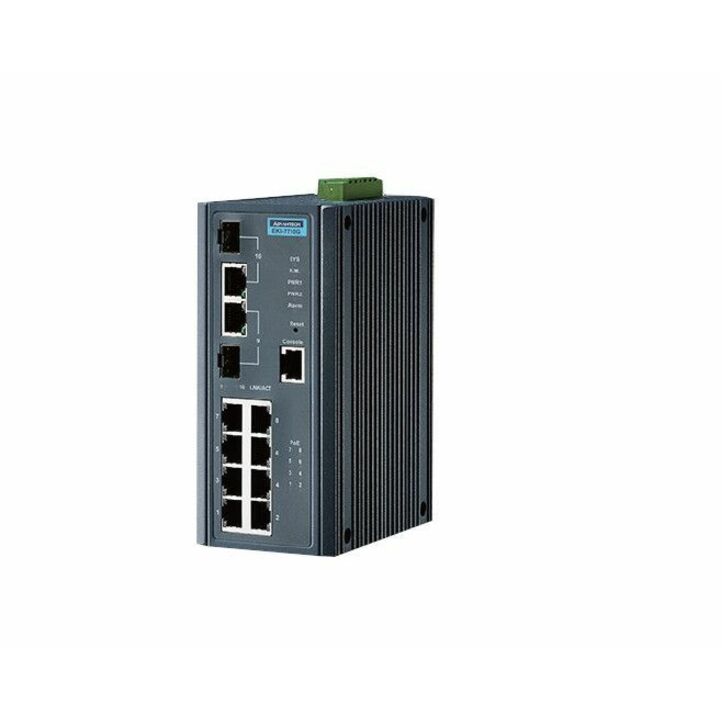

Advantech EKI-7710G-2CPI Ethernet Switch

$ 1,154.99 $ 1,154.99
$ 1,154.99

$ 1,154.99 / Units
  • Brand
  • Depth
  • Weight (Approximate)
  • Height
  • Product Name
  • Brand Name
  • Manufacturer Part Number
  • Width
  • Network Technology
  • Manageable
  • Features
  • Modular
  • Network (RJ-45)
  • Total Number of Network Ports
  • PoE (RJ-45) Port
  • Total Number of Expansion Slots
  • Expansion Slot Type
  • Number of SFP Slots
  • Port/Expansion Slot Details
  • Plug/Connector Type
  • Form Factor
  • Product Material
  • Maximum Data Transfer Rate
  • Ethernet Technology
  • Networking Standards
  • Layer Supported
  • Media Type Supported
  • Input Voltage
  • MTBF
  • Environmental Compliance
  • Certifications & Standards
  • Country of Origin
  • Limited Warranty
  • Manufacturer
  • Product Type
  • Product Series
  • Product Model
  • Manufacturer Website Address
  • Power Source
  • Power Consumption
Add to cart
Buy now
Add to wishlist
This product is eligible for 30-day returns. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days
Contact Us
  • 8 x IEEE 802.3 af/at PoE Gigabit ports + 2 x Gigabit copper/SFP combo ports
  • SFP socket for easy and flexible fiber expansion
  • Redundancy: X-Ring Pro (ultra-high-speed recovery time,
  • IXM function enables fast deployment
  • Security: 802.1x (port-based, MD5/TLS/TTLS/PEAP encryption), RADIUS
  • Management: SNMP v1/v2c/v3, WEB, Telnet, standard MIB, private MIB
  • NEMA TS2 for traffic control
  • EN50121-4 approval for railway trackside deployment
  • Dual 24 ~ 48 VDC power input and 1 x relay output
  • Wide operating temperature range of -40 ~ 75°C (EKI-7710G-2CPI)
Brand
Brand Advantech Co.
Power & Battery
Plug/Connector Type Terminal Block
Input Voltage 48 V DC
Power Source PoE+
Power Consumption 12.10 W
Networking & Connectivity
Network Technology 1000Base-X
Layer Supported 2
Ethernet Port
Network (RJ-45) Yes
Total Number of Network Ports 8
PoE (RJ-45) Port Yes
Size / Dimensions
Form Factor Wall Mountable
Appearance
Modular Yes
General Features
Manageable Yes
Maximum Data Transfer Rate 125 MB/s
MTBF 858835 Hour
Manufacturer Advantech Co., Ltd
Expansion Slots
Total Number of Expansion Slots 2
Expansion Slot Type SFP
Number of SFP Slots 2
Misc Ports
Port/Expansion Slot Details 2 x Gigabit Ethernet TP/SFP Combo Port
Printer/Scanner/Fax Specs
Media Type Supported Optical Fiber
