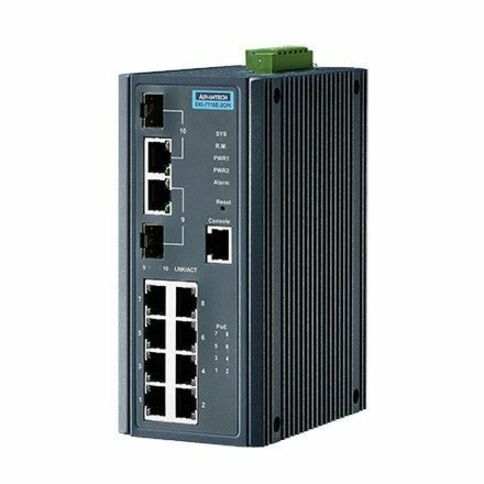

Advantech EKI-7710E-2CPI Ethernet Switch

$ 989.99 $ 989.99
$ 989.99

$ 989.99 / Units
  • Brand
  • Depth
  • Weight (Approximate)
  • Height
  • Product Name
  • Total Number of Expansion Slo
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Width
  • Network Technology
  • Manageable
  • Modular
  • Network (RJ-45)
  • Total Number of Network Ports
  • PoE (RJ-45) Port
  • Expansion Slot Type
  • Number of SFP Slots
  • Shared SFP Slot
  • Port/Expansion Slot Details
  • Plug/Connector Type
  • Form Factor
  • Product Material
  • Ethernet Technology
  • Networking Standards
  • Layer Supported
  • Media Type Supported
  • Input Voltage
  • Environmentally Friendly
  • Environmental Compliance
  • Certifications & Standards
  • Country of Origin
  • Limited Warranty
  • Manufacturer
  • Product Type
  • Product Model
  • Application/Usage
  • Manufacturer Website Address
  • Power Source
  • Power Consumption
Add to cart
Buy now
Add to wishlist
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Contact Us

The EKI-7710E-2CP/2CPI support 8 PoE ports and 2 Gigabit combo ports. They can provide up to 30 W per port for high-power-consumption powered devices. They also features Advantech's IXM function, which can benefit users with fast deployment and can save considerably on engineering time and cost. The series also support NMS to help IT managers with networking maintenance and failure prevention. Finally, they are equipped with X-Ring Pro, which can achieve ultra-high-speed recovery times of <20 ms, thus ensuring network stability.

  • 8 x IEEE 802.3 af/at PoE Fast Ethernet ports + 2 x Gigabit Copper/SFP combo ports
  • SFP socket for Easy and Flexible Fiber Expansion
  • Redundancy: Gigabit X-Ring Pro (ultra high-speed recovery time
  • IXM function enables fast deployment
  • Security: 802.1x (Port-Based, MD5/TLS/TTLS/PEAP Encryption), RADIUS
  • Management: SNMP v1/v2c/v3, WEB, Telnet, Standard MIB, Private MIB
  • -40 ~ 75°C wide-range operating temperature (EKI-7710E-2CPI)
  • Dual 24~48 V DC power input and 1 relay output
Brand
Brand Advantech Co.
Power & Battery
Plug/Connector Type Terminal Block (6 Wire)
Input Voltage 48 V DC
Power Source DC
Power Consumption 12.10 W
Networking & Connectivity
Network Technology 1000Base-T
Layer Supported 2
Ethernet Port
Network (RJ-45) Yes
Total Number of Network Ports 10
PoE (RJ-45) Port Yes
Size / Dimensions
Form Factor Wall Mountable
Appearance
Modular Yes
General Features
Manageable Yes
Manufacturer Advantech Co., Ltd
Expansion Slots
Total Number of Expansion Slo 2
Expansion Slot Type SFP (mini-GBIC)
Number of SFP Slots 2
Shared SFP Slot Yes
Misc Ports
Port/Expansion Slot Details 2 x Gigabit Ethernet TP/SFP Combo
Printer/Scanner/Fax Specs
Media Type Supported Optical Fiber
Compliance & Certification
Environmentally Friendly Yes
Miscellaneous
Product Name EKI-7710E-2CPI Ethernet Switch
Advantech EKI-7710E-2CPI Ethernet Switch - 10 Ports - Manageable - Fast Ethernet, Gigabit Ethernet - 10/100Base-TX, 1000Base-X, 1000Base-T - 2 Layer Supported - Modular - 2 SFP Slots - 12.10 W Power Consumption - Twisted Pair, Optical Fiber - PoE Ports - DIN Rail Mountable, Wall Mountable - 5 Year Limited Warranty
