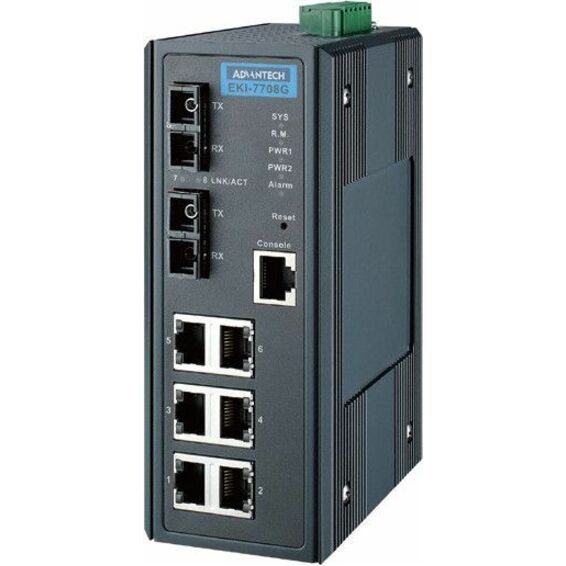

Advantech EKI-7708G-2MI Ethernet Switch

$ 994.99 $ 994.99
$ 994.99

$ 994.99 / Units
  • Brand
  • Depth
  • Height
  • Product Name
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Width
  • Redundant Power Supply Suppor
  • Fiber Optic Cable Core/Claddi
  • Network Technology
  • Manageable
  • Features
  • Network (RJ-45)
  • Total Number of Network Ports
  • Fiber Mode Supported
  • Port/Expansion Slot Details
  • Plug/Connector Type
  • Fiber Optic Cable Wavelength
  • Form Factor
  • Product Material
  • Maximum Data Transfer Rate
  • Ethernet Technology
  • Networking Standards
  • Layer Supported
  • Media Type Supported
  • Input Voltage
  • Environmental Compliance
  • Limited Warranty
  • Manufacturer
  • Product Type
  • Product Model
  • Application/Usage
  • Manufacturer Website Address
  • Power Source
  • Power Consumption
Add to cart
Buy now
Add to wishlist
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Contact Us

Advantech's EKI-7708G-2MI/2SI are cost effective managed industrial Ethernet switches which support Gigabit Ethernet via built in fiber optic ports. These solutions feature embedded IXM functions to hasten deployment and reduce engineering time/costs. These switches extend transmission distances beyond the 100 m (328 ft) copper cable limitations using fiber port they support 550 m (1804 ft) in multi-mode and 10 km (6.21 mi) in single mode. The EKI-7708G-2MI/2SI series supports WebAccess/NMS to aid in network maintenance and failure prevention. These managed Ethernet switches deliver ultra-high speed recovery times of <20 ms using X-Ring Pro to ensure network stability. This solution supports broad operating temperatures (-40 ~ 75 °C /-40 ~ 167 °F), for use in traffic applications.

  • Provides 6 x 10/100/1000 Mbps Ethernet ports with RJ45 connector
  • Provides 2 x 1000 Mbps fiber ports with SC type connector for 1000Base-SX/LX device
  • Redundancy: X-Ring Pro (ultra-high speed recovery time <20 ms), RSTP/ STP(802.1w/1D)
  • IXM function enables fast deployment
  • Security: 802.1X (port-based, MD5/TLS/TTLS/PEAP encryption), RADIUS
  • Management: SNMP v1/v2c/v3, WEB, Telnet, and Console
  • Supports redundant 12 ~ 48 VDC and 24VAC power input
  • Provides flexible mounting: DIN-rail and wall mount
Brand
Brand Advantech Co.
Power & Battery
Redundant Power Supply Suppor Yes
Plug/Connector Type Terminal Block
Input Voltage 30 V AC
Power Source AC/DC
Power Consumption 7 W
Networking & Connectivity
Network Technology 1000Base-SX/LX
Layer Supported 2
Ethernet Port
Network (RJ-45) Yes
Total Number of Network Ports 6
Size / Dimensions
Form Factor Enclosure
General Features
Manageable Yes
Maximum Data Transfer Rate 128 MB/s
Manufacturer Advantech Co., Ltd
Misc Ports
Port/Expansion Slot Details 2 x 1000Base-SX/LX Gigabit Ethernet Multi-Mode SC Connector
Printer/Scanner/Fax Specs
Media Type Supported Optical Fiber
Cables
Fiber Optic Cable Core/Claddi 62.5/125 µm
Fiber Mode Supported Multi-mode
Fiber Optic Cable Wavelength 850 nm
