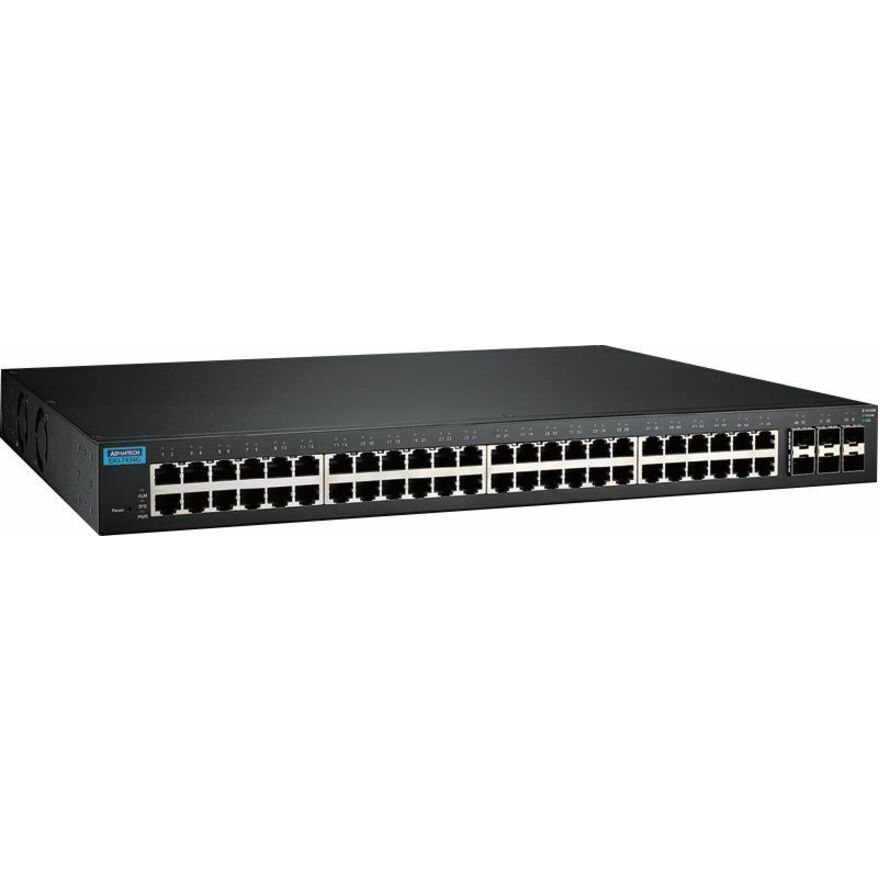

The EKI-7454G-6X is equipped with 48 Gigabit Ethernet ports plus 6 10G SFP+ ports. It is ideal for large-scale networks with server and surveillance applications, that involve high resolution videos and images, to achieve high performance and large-scale data transmission. Designed for rack-mount installation with 1U 19" design, integrates layer 2 switching software, delivering wire speed across all ports up to 216 Gbps for layer 2 and network nodes.
- 48 Gigabit Ethernet Ports and 6 10G SFP Ports
- 0 to 60°C operating temperature range
- Management: SNMP v1/v2c/v3, WEB, Telnet, Standard MIB
- IXM Function Enables Fast Deployment
- Redundancy: Gigabit X-Ring Pro ((Ultra High-Speed Recovery Time < 20 ms), RSTP/STP (802.1w/1D), MSTP
| Brand | |
|---|---|
| Brand | Advantech Co. |
| Power & Battery | |
|---|---|
| Input Voltage | 230 V AC |
| Power Source | AC |
| Power Consumption | 36 W |
| Networking & Connectivity | |
|---|---|
| Network Technology | 10GBase-X |
| Layer Supported | 2 |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Total Number of Network Ports | 48 |
| Size / Dimensions | |
|---|---|
| Form Factor | Enclosure |
| Compatible Rack Unit | 1U |
| General Features | |
|---|---|
| Manageable | Yes |
| Maximum Data Transfer Rate | 1.25 GB/s |
| Manufacturer | Advantech Co., Ltd |
| Expansion Slots | |
|---|---|
| Total Number of Expansion Slots | 6 |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 6 |
| Misc Ports | |
|---|---|
| Port/Expansion Slot Details | 6 x 1/10 Gigabit Ethernet SFP+ Expansion Slot |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Optical Fiber |
