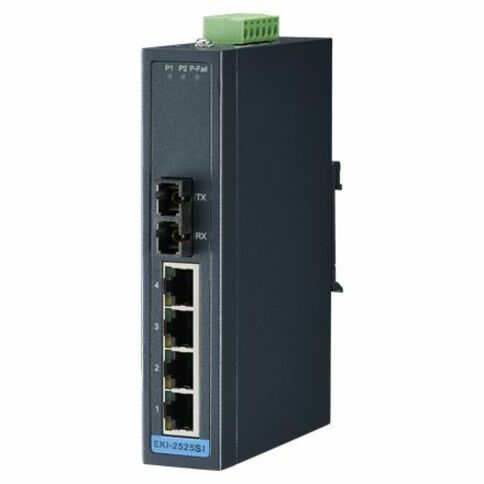

EKI-2525MI/2525SI are industrial-grade Ethernet switches that enable you to expand your industrial network quickly and cost-effectively. The EKI-2525MI/2525SI have four 10/100 Mbps Ethernet ports. Additionally the EKI-2525MI provides one multi-mode fiber-optic ports, while the EKI-2525SI provides one single-mode fiber-optic port. Using fiber-optics prevents noise from interfering with your system and supports high-speed (100 Mbps) and high-distance (up to 30 km) transmission.
EKI-2525MI/2525SI have industrial-grade designs, assuring high reliability and stability in harsh environments. This makes them a robust bridge between enterprise fiber-optic backbones and Ethernet devices. EKI-2525MI/2525SI includes a switch controller that can automatically sense transmission speeds. The RJ45 interface can also be autodetected, so MDI or MDI-X are automatically selected and a crossover cable is not required. All Ethernet ports have memory buffers that support the store and forward mechanism, assuring all data is transmitted properly
- Provides 4 x 10/100 Mbps Ethernet ports with RJ45 connector
- Provides 1 x 100 Mbps Multi-mode SC type fiber optic port (EKI-2525MI)
- Provides 1 x 100 Mbps Multi-mode ST type fiber optic port (EKI-2525MI-ST)
- Provides 1 x 100 Mbps Single-mode SC type fiber optic port (EKI-2525SI)
- Provides 1 x 100 Mbps Single-mode ST type fiber optic port (EKI-2525SI-ST)
- Supports MDI/MDI-X auto crossover
- Provides redundant 12 ~ 48 VDC power input
- Provides flexible mounting: DIN-rail and wall mount
| Brand | |
|---|---|
| Brand | Advantech Co. |
| Power & Battery | |
|---|---|
| Redundant Power Supply Suppor | Yes |
| Plug/Connector Type | Terminal Block |
| Input Voltage | 48 V DC |
| Power Consumption | 5 W |
| Networking & Connectivity | |
|---|---|
| Network Technology | 100Base-FX |
| Layer Supported | 2 |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Total Number of Network Ports | 4 |
| Size / Dimensions | |
|---|---|
| Form Factor | DIN Rail Mountable |
| General Features | |
|---|---|
| Manageable | No |
| Maximum Data Transfer Rate | 12.50 MB/s |
| MTBF | 382904 Hour |
| Manufacturer | Advantech Co., Ltd |
| Misc Ports | |
|---|---|
| Port/Expansion Slot Details | 1 x 100FX SC Type Fiber Connector |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Optical Fiber |
| Cables | |
|---|---|
| Fiber Optic Cable Core/Claddi | 9/125 µm |
| Fiber Mode Supported | Single-mode |
| Fiber Optic Cable Wavelength | 1310 nm |
