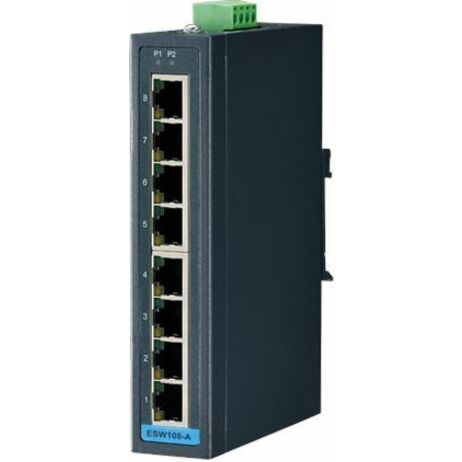

The ESW108-A provides a fast Ethernet solution. Power is delivered via either +12 ~ 48 VDC or 10~24VAC redundant input design. The ESW108-A comes with a compact metal enclosure, making it suitable for installation in narrow areas. The IP30-rated enclosure ensures protection against dusty industrial environments. The ESW108-A is also compliant with C1D2, making it perfect for harsh environments.
- 8 x fast Ethernet ports with auto MDI/MDI-X
- Supports 10/100 Mbps auto negotiation
- Compact size with DIN rail and wall mount
- Supports redundant 12~48 VDC or 10~24 VAC power input
- Wide operating temperature range of -40 ~ 75°C
- C1D2 for hazardous locations
| Brand | |
|---|---|
| Brand | Advantech Co. |
| Power & Battery | |
|---|---|
| Redundant Power Supply Suppor | Yes |
| Plug/Connector Type | Terminal Block |
| Input Voltage | 24 V AC |
| Power Source | AC/DC |
| Power Consumption | 5.10 W |
| Networking & Connectivity | |
|---|---|
| Network Technology | 10/100Base-TX |
| Layer Supported | 2 |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Total Number of Network Ports | 8 |
| PoE (RJ-45) Port | No |
| Size / Dimensions | |
|---|---|
| Form Factor | Enclosure |
| General Features | |
|---|---|
| Manageable | No |
| Maximum Data Transfer Rate | 12.50 MB/s |
| Manufacturer | Advantech Co., Ltd |
| Misc Ports | |
|---|---|
| Port/Expansion Slot Details | 8 x 10/100BASE-TX Ethernet RJ-45 Network Port |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
