Compact heavy duty antenna designed for 4G LTE, 2.4/5.0 GHz ISM and GNSS suitable for wide range of applications within industry. Antenna is made with specific anti-rotation mounting system. Housing of the antenna is certified for standards of IP67 for water resistance, IK09 for high impact resistance and IP69K standard for high pressure and hot water ingress.
- Delivers?enhanced performance at 698MHz to 960MHz frequency
- With its strong connection and faster transfer speeds, this cellular network provides the best reception
- Provides gain of up to 3 dB
- Receive signals from multiple directions with this omnidirectional antenna
- Antenna can be mounted as screw mount
| Brand | |
|---|---|
| Brand | Advantech Co. |
| Networking & Connectivity | |
|---|---|
| Antenna Type | Dome |
| Voltage Standing Wave Ratio ( | 2.1:1 |
| Voltage Standing Wave Ratio (VSWR) | 2.1:1 |
| Antenna Gain (Isotropic) | 5.6 dBi |
| Antenna Gain | 3 dB |
| Audio | |
|---|---|
| Directivity | Omni-directional |
| Size / Dimensions | |
|---|---|
| Form Factor | Screw Mount |
| General Features | |
|---|---|
| Operating Frequency Range | 4920MHz to 5925MHz |
| Manufacturer | Advantech Co., Ltd |
| Cables | |
|---|---|
| Connector Type | R-SMA |

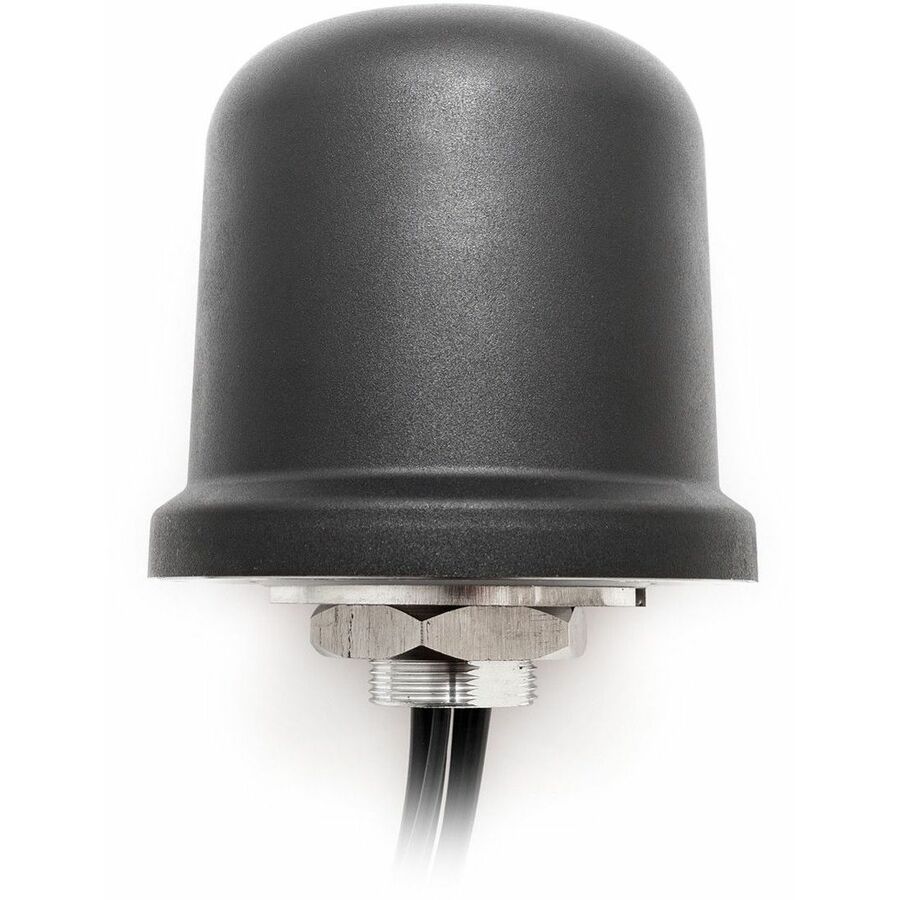

Advantech Antenna - 698MHz to 960MHz, 1710MHz to 2170MHz, 2500MHz to 2700MHz, 2410MHz to 2490MHz, 4920MHz to 5925MHz - 3 dB - 5.6 dBi - Cellular Network, Wireless Data Network, Industrial, GPS, GLONASSScrew Mount - Omni-directional - SMA, R-SMA Connector
