- Provides 4 x 10/100 Mbps Ethernet ports with RJ-45 connector and 1 x 100 Mbps multi/single-mode fiber port with SC/ST connector
- Supports full/half duplex flow control
- Supports Integrated Loop-up engine
- Supports MDI/MDI-X auto crossover
- Provides broadcast storm protection
- Supports +10 ~ 30 VDC voltage power input
- Provides surge (EFT) protection 3,000 VDC for power line
- Supports 4,000 VDC Ethernet ESD protection
- Supports operating temperatures from -10 ~ 65° C
| Brand | |
|---|---|
| Brand | Advantech Co. |
| Power & Battery | |
|---|---|
| Plug/Connector Type | Terminal Block |
| Input Voltage | 30 V DC |
| Power Source | DC |
| Power Consumption | 3 W |
| Networking & Connectivity | |
|---|---|
| Network Technology | 100Base-X |
| Layer Supported | 2 |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Total Number of Network Ports | 4 |
| PoE (RJ-45) Port | No |
| Size / Dimensions | |
|---|---|
| Form Factor | Enclosure |
| General Features | |
|---|---|
| Manageable | No |
| Maximum Data Transfer Rate | 12.50 MB/s |
| Manufacturer | Advantech Co., Ltd |
| Misc Ports | |
|---|---|
| Port/Expansion Slot Details | 1 x 100 Ethernet Multi-Mode SC Connector |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Optical Fiber |
| Cables | |
|---|---|
| Fiber Mode Supported | Multi-mode |
| Miscellaneous | |
|---|---|

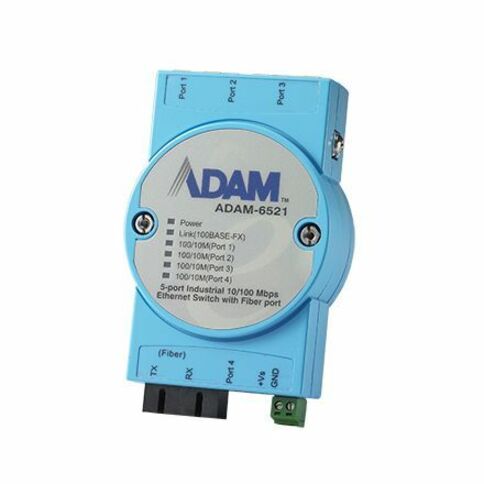

| Product Name | ADAM-6521-BE Ethernet Switch |
