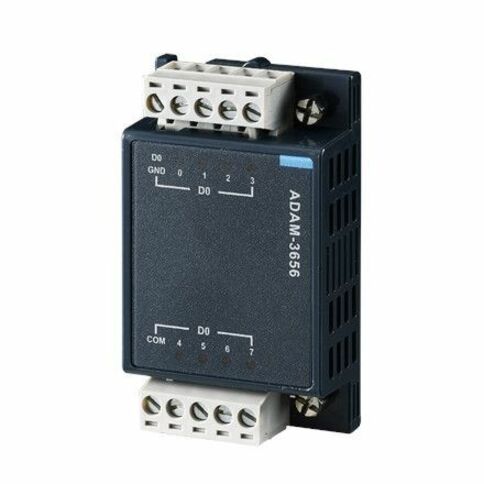

Advantech ADAM-3656 I/O Module

$ 94.99 $ 94.99
$ 94.99

$ 94.99 / Units
  • Brand
  • Product Name
  • Brand Name
  • Manufacturer Part Number
  • Humidity (Non-condensing)
  • Storage Temperature
  • Input Voltage
  • Input Current
  • Manufacturer
  • Product Type
  • Product Series
  • Product Model
  • Application/Usage
  • Manufacturer Website Address
  • Power Source
Add to cart
Buy now
Add to wishlist
This product is eligible for 30-day returns. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days
Contact Us
  • 8-ch Digital Output Module
  • Rated voltage : 8 ~ 30 VDC
  • Supports open collector (Sink) output type
  • Over voltage protection : +40 VDC
  • Opto-isolator response time : 150 us (max)
  • Pulse output frequency : 1 KHz
  • Isolation voltage : 2000 VDC
  • Rated current : 200 mA (max load)
  • -40 ~ 70°C operating temperature
Brand
Brand Advantech Co.
Power & Battery
Input Voltage 30 V DC
Input Current 200 mA
Power Source DC
General Features
Manufacturer Advantech Co., Ltd
Compliance & Certification
Humidity (Non-condensing) 5% to 95%
Storage Temperature -40°F (-40°C) to 185°F (85°C)
