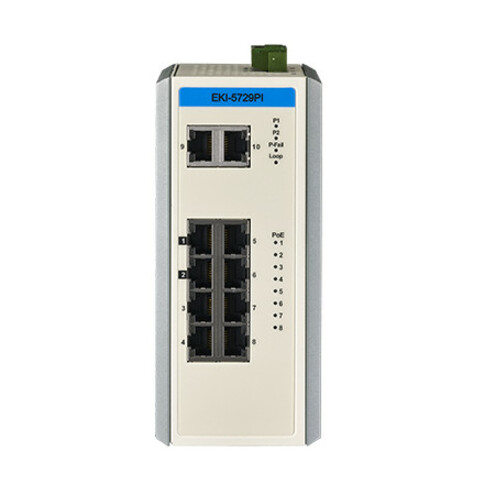

The EKI-5729P and EKI-5729PI switches support Power-over-Ethernet on ports 1 to 8. The switch is classified as power source equipment (PSE). Also it is the world's first convergence switches for process control and IT networking management. This series uses Modbus/TCP to communicate with the SCADA software and SNMP to communicate with the NMS (Networking Management System) at the same time, thereby allowing full read control over the devices either for control engineers or for IT. The devices come with the Port-based QoS for deterministic data transmission allows the priority ports to prioritize the traffic coming over those ports and delay the less immediately necessary data over the remaining ports. The switches use the highest quality components, to enable the range to operate in temperatures of between -40 and 75°C along with EMS Level 3 protection to repel electromagnetic interface for industrial resistance. The switches are compliant E-mark for in-vehicle application and surveillance system.
- Jumbo Frame Support (Up to 9,216 Bytes)
- Provides 5/6 Fast Ethernet ports with 8 PoE ports
- IEEE 802.3az Energy Efficient Ethernet (EEE)
- EMS level 3 protection for extreme outdoor environments
- Port-based QoS for deterministic data transmission
- -40 to 65°C operating temperature range (EKI-5729PI)
- Communicates with NMS (Networking management system) via SNMP
- Communicates with SCADA software via Modbus/TCP
- Full Gigabit Ethernet ports and comply with IEEE
- 802.3af/at PoE standard
| Brand | |
|---|---|
| Brand | Advantech Co. |
| Networking & Connectivity | |
|---|---|
| Network Technology | 10/100/1000Base-TX |
| Layer Supported | 2 |
| Ethernet Port | |
|---|---|
| Total Number of Network Ports | 10 |
| Uplink Port | No |
| Size / Dimensions | |
|---|---|
| Form Factor | DIN Rail Mountable |
| General Features | |
|---|---|
| Manageable | No |
| Manufacturer | Advantech Co., Ltd |
| Misc Ports | |
|---|---|
| Stack Port | No |
| Port/Expansion Slot Details | 10 x Gigabit Ethernet Network |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
| Miscellaneous | |
|---|---|
| Product Name | 12V~24VDC , 8GE PoE+2G Unmanaged Ethernet Switch , -40~75? , E-Mark , IEEE802.3af/at |
