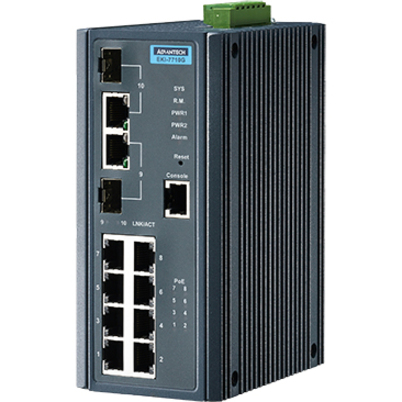

Advantech 8G+2G Port Gigabit Managed Redundant Industrial PoE Switch

$ 1,672.49 $ 1,672.49
$ 1,672.49

$ 1,672.49 / Units
  • Brand
  • Depth
  • Height
  • Product Name
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Width
  • Network Technology
  • Manageable
  • Modular
  • Network (RJ-45)
  • Total Number of Network Ports
  • PoE (RJ-45) Port
  • Total Number of Expansion Slots
  • Expansion Slot Type
  • Number of SFP Slots
  • Shared SFP Slot
  • Port/Expansion Slot Details
  • Plug/Connector Type
  • Form Factor
  • Product Material
  • Ethernet Technology
  • Networking Standards
  • Layer Supported
  • PoE Budget
  • Media Type Supported
  • Input Voltage
  • Environmentally Friendly
  • Environmental Compliance
  • Limited Warranty
  • Manufacturer
  • Product Type
  • Product Series
  • Product Model
  • Manufacturer Website Address
  • Power Source
  • Power Consumption
Add to cart
Buy now
Add to wishlist
This product is eligible for 30-day returns. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days
Contact Us

The EKI-7710G-2CP/2CPI support 8 Gigabit PoE ports and 2 Gigabit combo ports. They provide up to 30W per port for high-power-consumption powered devices. They come embedded with Advantech IXM function, which can benefit users with fast deployment and can dramatically save considerably on engineering time and costs. The EKI-7710G series also support NMS to help IT managers with networking maintenance and failure prevention. Finally, they are equipped with X-Ring Pro, which can achieve ultra-high-speed recovery times of <20 ms, thus ensuring network stability.

  • 8 x IEEE 802.3 af/at PoE Gigabit ports + 2 x Gigabit copper/SFP combo ports
  • SFP socket for easy and flexible fiber expansion
  • Redundancy: X-Ring Pro (ultra-high-speed recovery time, <20 ms), RSTP/STP (802.1w/1D)
  • IXM function enables fast deployment
  • Security: 802.1x (port-based, MD5/TLS/TTLS/PEAP encryption), RADIUS
  • Management: SNMP v1/v2c/v3, WEB, Telnet, standard MIB, private MIB
  • NEMA TS2 for traffic control
  • EN50121-4 approval for railway trackside deployment
  • Dual 24 ~ 48 VDC power input and 1 x relay output
  • Wide operating temperature range of -40 ~ 75°C (EKI-7710G-2CPI)
Brand
Brand Advantech Co.
Power & Battery
Plug/Connector Type Terminal Block
PoE Budget 120 W
Input Voltage 48 V DC
Power Source DC
Power Consumption 12.10 W
Networking & Connectivity
Network Technology 1000Base-X
Layer Supported 2
Ethernet Port
Network (RJ-45) Yes
Total Number of Network Ports 8
PoE (RJ-45) Port Yes
Size / Dimensions
Form Factor Wall Mountable
Appearance
Modular Yes
General Features
Manageable Yes
Manufacturer Advantech Co., Ltd
Expansion Slots
Total Number of Expansion Slots 2.0
Expansion Slot Type SFP (mini-GBIC)
Number of SFP Slots 2
Shared SFP Slot Yes
Misc Ports
Port/Expansion Slot Details 2 x Gigabit Ethernet TP/SFP Combo
Printer/Scanner/Fax Specs
Media Type Supported Optical Fiber
Compliance & Certification
Environmentally Friendly Yes
