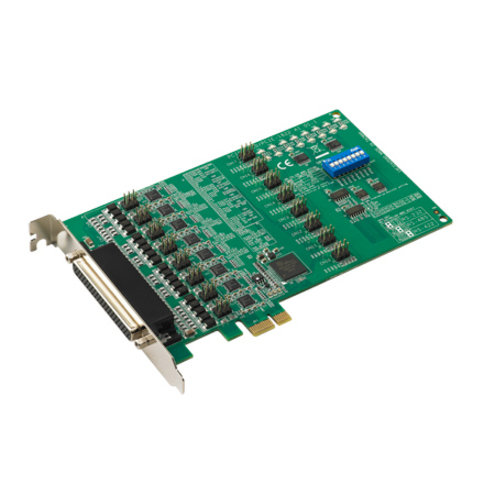

PCIE-1620 is an 8-port RS-232, and PCIE-1622 is an 8-port RS-232/422/485 PCI Express communication cards that are compatible with the PCI Express x 1 specification. The cards provide eight EFT protected RS-232/422/485 ports up to 2,500 VDC, and have many functions such as high transmission speed of 921.6 kbps; either eight independent RS-232 ports or eight independent RS-232/422/485 ports which comes with high-performance PCIe958 UARTs with 128-byte FIFO to reduce CPU load. Thus, the PCIE-1620/ PCIE-1622 are especially suitable for making your system reliable in multitasking environments.
- 8 x RS-232 or RS-232/422/485 ports
- XR17V358 UART with 256-byte FIFOs
- Speeds up to 921.6 kbps for extremely fast data transmission
- Supports any baud rate setting
- PCI Express bus 2.0 compliant
| Brand | |
|---|---|
| Brand | Advantech Co. |
| Size / Dimensions | |
|---|---|
| Form Factor | Plug-in Card |
| General Features | |
|---|---|
| Maximum Data Transfer Rate | 921.60 kbit/s |
| Manufacturer | Advantech Co., Ltd |
| Misc Ports | |
|---|---|
| Host Interface | PCI Express 2.0 x1 |
| Number of Serial Ports | 1 |
| Ports Expandability | 8 x RS-232/422/485 - Serial |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
Advantech 8-port RS-232/422/485 PCI Express Communication Card - PCI Express 2.0 x1 - 8 x RS-232/422/485 - Serial - Plug-in Card
