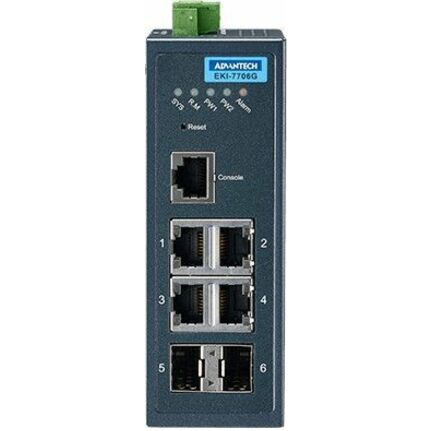

Advantech 4GE+2G SFP Managed Ethernet Switch

$ 679.49 $ 679.49
$ 679.49

$ 679.49 / Units
  • Brand
  • Depth
  • Weight (Approximate)
  • Height
  • Product Name
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Width
  • Redundant Power Supply Suppor
  • Network Technology
  • Manageable
  • Modular
  • Total Number of Network Ports
  • Total Number of Expansion Slots
  • Expansion Slot Type
  • Number of SFP Slots
  • Port/Expansion Slot Details
  • Form Factor
  • Product Material
  • Maximum Data Transfer Rate
  • Ethernet Technology
  • Networking Standards
  • Media Type Supported
  • Input Voltage
  • Environmentally Friendly
  • Environmental Compliance
  • Limited Warranty
  • Manufacturer
  • Product Type
  • Product Series
  • Product Model
  • Manufacturer Website Address
  • Power Consumption
Add to cart
Buy now
Add to wishlist
This product is eligible for 30-day returns. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days
Contact Us

Introduction

The EKI-7706G-2F and EKI-7706G-2FI support 4 Gigabit Ethernet ports and 2 SFP ports. They provide abundant port options for connecting to various device types and are embedded with Advantech's IXM function, which can benefit users with faster deployment while saving considerably on engineering time and costs. The EKI-7706G series also supports NMS to help IT managers with networking maintenance and failure prevention. The series is equipped with X-Ring Pro, which can achieve ultra-high-speed recovery times of <20 ms, thus ensuring network stability.

  • Dual 12~48 VDC power input and 1 relay output
  • -40 ~ 85 °C wide-range operating temperature (EKI-7706G-2FI)
  • Management: SNMP v1/v2c/v3, WEB, Telnet, standard MIB, private MIB
  • IXM function enables fast deployment
  • Security: 802.1x (Port-based, MD5/TLS/TTLS/PEAP encryption), RADIUS
  • Redundancy: X-Ring Pro (ultra high-speed recovery time
  • SFP socket for easy and flexible fiber expansion
  • 4 Gigabit Ethernet ports + 2 SFP ports
Brand
Brand Advantech Co.
Power & Battery
Redundant Power Supply Suppor Yes
Input Voltage 48 V DC
Power Consumption 5.28 W
Networking & Connectivity
Network Technology 10/100/1000Base-T
Ethernet Port
Total Number of Network Ports 4
Size / Dimensions
Form Factor DIN Rail Mountable
Appearance
Modular Yes
General Features
Manageable Yes
Maximum Data Transfer Rate 128 MB/s
Manufacturer Advantech Co., Ltd
Expansion Slots
Total Number of Expansion Slots 2
Expansion Slot Type SFP
Number of SFP Slots 2
Misc Ports
Port/Expansion Slot Details 2 x Gigabit Ethernet SFP Expansion Slot
Printer/Scanner/Fax Specs
Media Type Supported Optical Fiber
Compliance & Certification
Environmentally Friendly Yes
