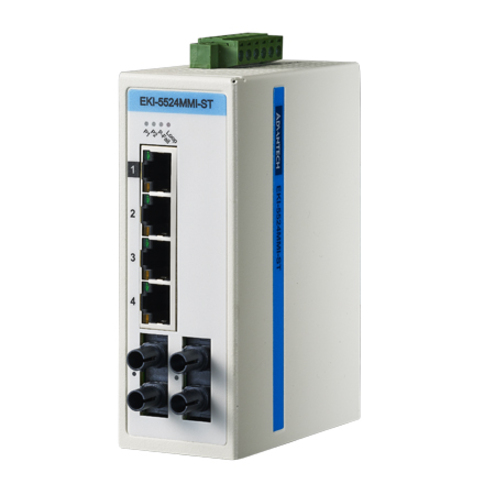

The EKI-5524SS/SSI/SS-ST/SSI-ST and EKI-5524MM/MMI/MM-ST/MMI-ST are the world's first convergence switches for process control and IT networking management. This series uses Modbus/TCP to communicate with the SCADA software and SNMP to communicate with NMS (Networking Management System) at the same time, thereby allowing full read control over the devices either for control engineers or for IT. The devices come with the Port-based QoS for deterministic data transmission allows the priority ports to prioritize the traffic coming over those ports and delay the less immediately necessary data over the remaining ports. EKI-5524SS/SSI/SS-ST/SSI-ST and EKI-5524MM/MMI/MM-ST/MMIST switches use the highest quality components, to enable the range to operate in temperatures of between -40 and 75'C along with EMS Level 3 protection to repel electromagnetic interface for industrial resistance.
- Effectively reduces downtime with improved network performance
- Quickly and easily set up a wired network with 4 networking ports
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
- Wall Mountable form factor allows hassle-free and easy usage with increased efficiency
- The unmanaged switch provides a quick, easy and cost-saving way to add wired networking to your home, office or small business; no intervention needed
- Featuring Fast Ethernet ports to speed up the transfer rate up to 100mb/sec of large files and digital assets across your network
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
| Brand | |
|---|---|
| Brand | Advantech Co. |
| Networking & Connectivity | |
|---|---|
| Network Technology | 10/100Base-FX |
| Layer Supported | 2 |
| Ethernet Port | |
|---|---|
| Total Number of Network Ports | 4 |
| Uplink Port | No |
| Size / Dimensions | |
|---|---|
| Form Factor | DIN Rail Mountable |
| Appearance | |
|---|---|
| Modular | No |
| General Features | |
|---|---|
| Manageable | No |
| Manufacturer | Advantech Co., Ltd |
| Misc Ports | |
|---|---|
| Stack Port | No |
| Port/Expansion Slot Details | 2 x Fast Ethernet Network |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Optical Fiber |
