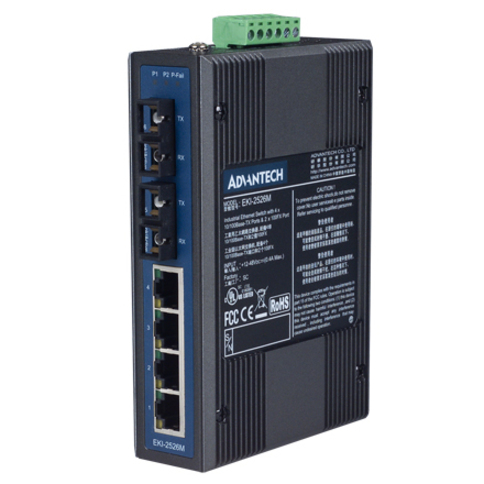

EKI-2525M/2526M/2526S are industrial-grade Ethernet switches that enable you to expand your industrial network fast and cost-effectively. The EKI-2525M/2526M/2526S have four 10/100 Mbps Ethernet ports, and additionally the EKI-2525M/2526M provides one or two multi-mode fiber-optic ports, while the EKI-2526S provides two single-mode fiber-optic ports. Using fiber-optics, you can prevent noise from interfering with your system and supports high-speed (100 Mbps) and high-distance (up to 30 km) transmissions.
EKI-2525M/2526M/2526S have industrial-grade designs, assuring high reliability and stability in harsh environments, making it a robust bridge between enterprise fiber-optic backbones and Ethernet devices. EKI-2525M/2526M/2526S includes a switch controller that can automatically sense transmission speeds. The RJ45 interface can also be autodetected, so MDI or MDI-X is automatically selected and a crossover cable is not required. All the Ethernet ports have memory buffers that support the store and forward mechanism, assuring all data is transmitted properly.
- Effectively increases available bandwidth on your network
- Quickly and easily set up a wired network with 6 networking ports
- With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
- Wall Mountable form factor allows hassle-free and easy usage with increased efficiency
- The unmanaged switch provides a quick, easy and cost-saving way to add wired networking to your home, office or small business; no intervention needed
- Fast Ethernet technology gives ideal solution for extending network connections to conference rooms, labs, lobbies and department workgroups
- Supports optical fiber cable to span longer distances and provided high data transmission rates between servers and network components
| Brand | |
|---|---|
| Brand | Advantech Co. |
| Power & Battery | |
|---|---|
| Redundant Power Supply Suppor | No |
| Power Source | Power Adapter |
| Networking & Connectivity | |
|---|---|
| Network Technology | 100Base-FX |
| Layer Supported | 2 |
| Ethernet Port | |
|---|---|
| Total Number of Network Ports | 6 |
| Uplink Port | No |
| Size / Dimensions | |
|---|---|
| Form Factor | Rail-mountable |
| Appearance | |
|---|---|
| Modular | No |
| General Features | |
|---|---|
| Manageable | No |
| Manufacturer | Advantech Co., Ltd |
| Misc Ports | |
|---|---|
| Stack Port | No |
| Port/Expansion Slot Details | 6 x Fast Ethernet Network |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Optical Fiber |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
