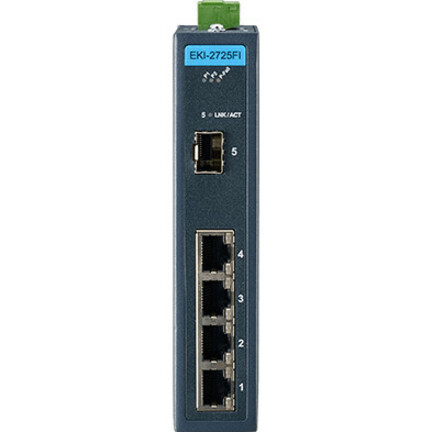

The EKI-2725F supports Gigabit Ethernet. The power rating is +12 ~ 48 V DC redundant input design, and is secured with a double protection mechanism: Power Polarity Reverse Protection and an Overload Current Fuse. The former tolerates reverse power wiring while the later secures the system from overload currents. Each port of EKI-2725F has 2 LED's to show the link status transmission speed and collision status. It also provides a relay output for an event alarm. In the event of a power failure, the built-in LED will activate the alarm to notify administrators. Engineers can simply verify the hardware status by checking the LED, which makes troubleshooting quick and easy. EKI-2725F comes with compact metal housing rated at IP30 to protect against dusty industrial environments.
- Effectively increases available bandwidth on your network
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 4 ports
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
- DIN Rail Mountable form factor for your convenience and simplicity of usage
- The unmanaged switch provides a quick, easy and cost-saving way to add wired networking to your home, office or small business; no intervention needed
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- Twisted Pair media support for a dependable and productive connectivity
| Brand | |
|---|---|
| Brand | Advantech Co. |
| Networking & Connectivity | |
|---|---|
| Network Technology | 1000Base-X |
| Layer Supported | 2 |
| Ethernet Port | |
|---|---|
| Total Number of Network Ports | 4 |
| Uplink Port | No |
| Size / Dimensions | |
|---|---|
| Form Factor | Wall Mountable |
| Appearance | |
|---|---|
| Modular | No |
| General Features | |
|---|---|
| Manageable | No |
| Manufacturer | Advantech Co., Ltd |
| Expansion Slots | |
|---|---|
| Total Number of Expansion Slots | 1.0 |
| Expansion Slot Type | SFP (mini-GBIC) |
| Number of SFP Slots | 1 |
| Shared SFP Slot | No |
| Misc Ports | |
|---|---|
| Stack Port | No |
| Port/Expansion Slot Details | 1 x Gigabit Ethernet Expansion Slot |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Optical Fiber |
| Miscellaneous | |
|---|---|
| Product Name | 4 GE + 1 SFP Ind. Unmanaged Switch W/T |
