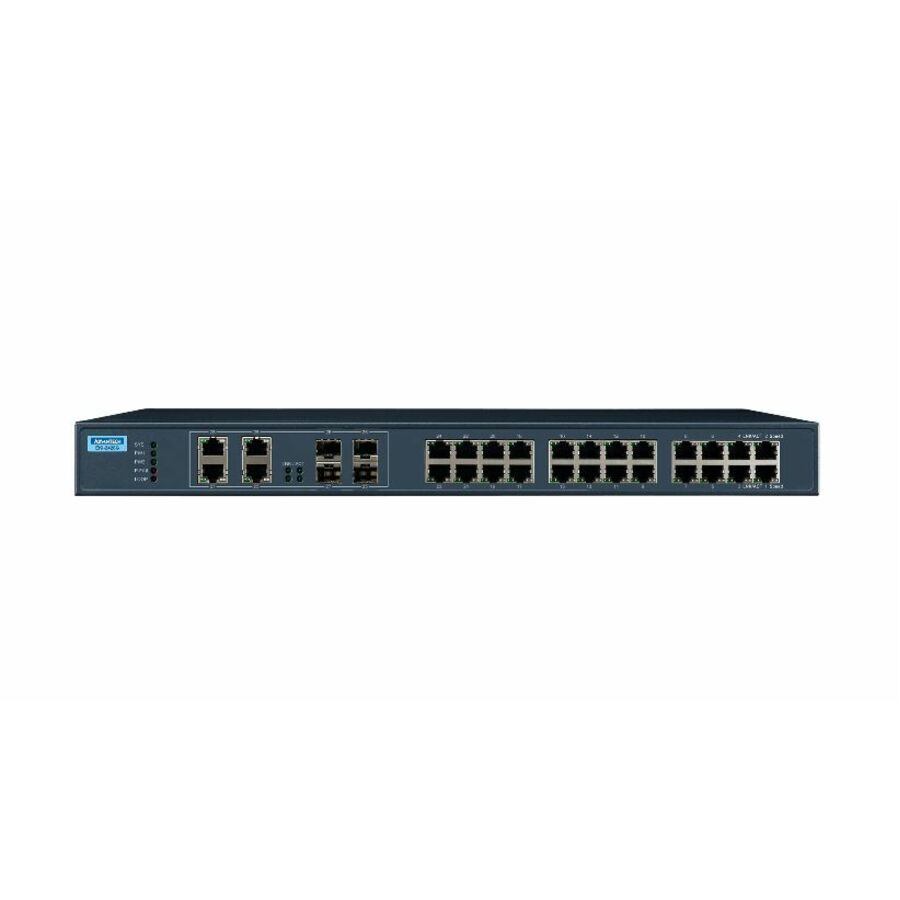

The EKI-2428G is an industrial-class unmanaged switch with 24 Gigabit ports and 4 Gigabit combo ports. It is designed for rack-mount installation, and can be deployed in demanding industrial environments. It is suitable for edge to core industrial networks. It is highly reliable with -40 ~ 70 °C wide temperature operation.
- 24 x Gigabit ports + 4 x Gigabit copper/SFP combo ports
- SFP socket for Easy and Flexible Fiber Expansion
- Provides 8K MAC address
- Supports 12-48VDC power input
- -40 ~ 70°C wide-range operating temperature
| Brand | |
|---|---|
| Brand | Advantech Co. |
| Power & Battery | |
|---|---|
| Plug/Connector Type | Terminal Block (4 Wire) |
| Input Voltage | 48 V DC |
| Power Source | DC |
| Power Consumption | 20 W |
| Networking & Connectivity | |
|---|---|
| Network Technology | 1000Base-EZX |
| Layer Supported | 2 |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Total Number of Network Ports | 28 |
| PoE (RJ-45) Port | No |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| Compatible Rack Unit | 1U |
| General Features | |
|---|---|
| Manageable | No |
| Maximum Data Transfer Rate | 128 MB/s |
| MTBF | 787940 Hour |
| Manufacturer | Advantech Co., Ltd |
| Expansion Slots | |
|---|---|
| Shared SFP Slot | Yes |
| Misc Ports | |
|---|---|
| Port/Expansion Slot Details | 4 x Gigabit Copper/SFP Combo Ports |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
