The IMC-370 series offers the most compact media converters. They can extend the 10 and 100Mbps twisted-pair network segments up to 80km over fiber technology. Supporting both 10/100 auto negotiation on the copper port and 100Mbps full-duplex on the fiber port, the IMC-370 series serves as a media and data rate converter.
The IMC-370I-SFP supports Link Fault Pass Through (LFPT) functionality which can be enabled/disabled by a DIP switch on the unit. This useful diagnostic feature assists the network administrator in indicating a fault condition on a given segment between the interfaces.
The IMC-370I supports plug-n-play functionality, auto negotiation, and AutoCross operation. It can be powered by AC/DC power, dual USB cable, or via installation in a centrally powered media converter chassis.
- Centralized powered IMC-318I chassis
- Supports Link Fault Pass Through (LFPT) (IMC-370I-SFP)
- Provides status LED
- Supports multiple power options: AC or DC adapter and dual USB cable
- Industrial grade design that supports extended operating temperature (IMC-370I series)
- Metal enclosure with compact size
| Brand | |
|---|---|
| Brand | Advantech Co. |
| Power & Battery | |
|---|---|
| Power Source | AC/DC |
| Networking & Connectivity | |
|---|---|
| Network Technology | 1000Base-LX |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| Network (RJ-45) | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Wall Mountable |
| General Features | |
|---|---|
| Maximum Distance Supported | 15 km |
| Manufacturer | Advantech Co., Ltd |
| Misc Ports | |
|---|---|
| Total Number of Ports | 2 |
| SC Port Type | Duplex |
| Number of SC Ports | 1 |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Optical Fiber |
| Cables | |
|---|---|
| Fiber Mode Supported | Single-mode |
| Fiber Optic Cable Wavelength | 1310 nm |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
| Miscellaneous | |
|---|---|

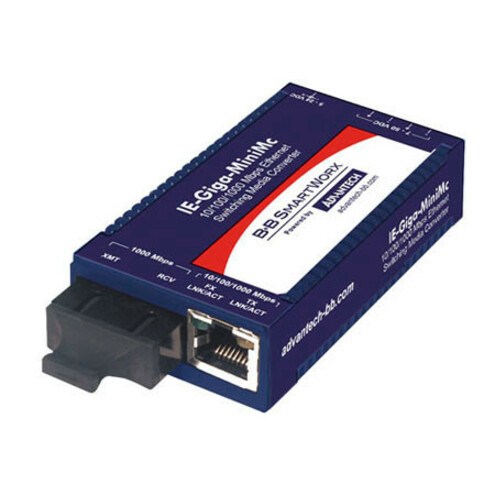

| Product Name | 10/100/1000Mbps Miniature Media Converter |
