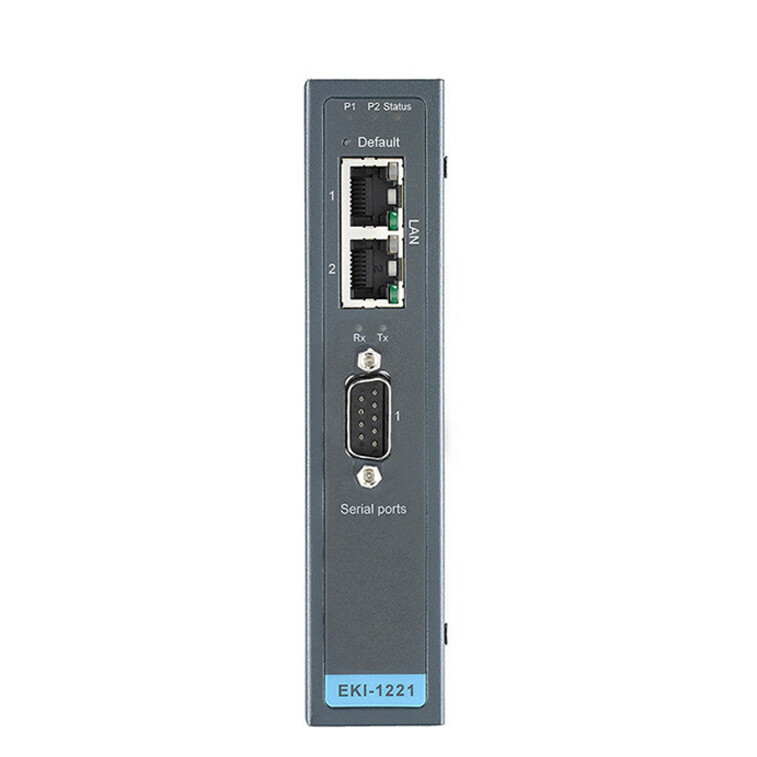

The EKI-1200 series Modbus gateways are bi-directional gateways for integrating new and existing Modbus/RTU and Modbus/ASCII serial devices to newer TCP/IP networked-based devices. The EKI-1221/1222/1224 feature two independent Ethernet ports and MAC addresses to provide redundancy and reliability. They provide a simple and cost-effective way to bring remote management and data accessibility to thousands of devices that cannot otherwise connect to a network. The EKI-1221/1222/1224 allow users to select master or slave operation mode for each serial port. In addition to allowing an Ethernet master to control serial slaves, they also allow serial masters to control Ethernet slaves.
- Automatic RS-485 data flow control
- Built-in 15 KV ESD protection for all serial signals
- Supports surge protection for D.C. power ports with line to line 2 KV, and line to earth 4 KV; for signal ports with 4 KV.
- Mounts on DIN-rail and Wall mount
- Software selectable RS-232/422/485 communication
- support up to 16 connections on each serial port under Modbus Master mode and 32 sessions under Modbus Slave mode.
- Supports up to 921.6 kbps, and any baud rate setting
- Integration of Modbus TCP and Modbus RTU/ASCII networks
- Provides 2 x 10/100 Mbps Ethernet ports for LAN redundancy
| Brand | |
|---|---|
| Brand | Advantech Co. |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 2 |
| Network (RJ-45) | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Wall Mountable |
| General Features | |
|---|---|
| Manufacturer | Advantech Co., Ltd |
| Misc Ports | |
|---|---|
| Serial Port | Yes |
| Number of Serial Ports | 1 |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
