This is a serial media converter that allows the conversion from a RS232 port to fiber via a 1310nm single-mode fiber (SMF) ST connector, allowing a distance reach up to 20km. This provides a cost effective conversion from serial RS232 to fiber, while extending your network reach beyond the 100m reach limitation of copper. Our media converters are 100% compliant for all of our networking needs. Now you have a cost effective solution to your network upgrade needs.
- Supports optical fiber cable for durable performance, minimal signal loss, and fast data transfers to greater distances
- Meet the multiple network connectivity needs of today's network environment with this 2 transceiver/media converter
- Can be placed on Desktop surface for standalone installation
| Brand | |
|---|---|
| Brand | AddOn |
| Power & Battery | |
|---|---|
| Input Voltage | 5 V DC |
| Power Source | AC/DC |
| USB Ports | |
|---|---|
| USB | No |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | No |
| Audio | |
|---|---|
| Digital Audio | No |
| Size / Dimensions | |
|---|---|
| Form Factor | Desktop |
| General Features | |
|---|---|
| Digital Audio/Video | No |
| Maximum Data Transfer Rate | 115.20 kbit/s |
| Maximum Distance Supported | 20 km |
| Manufacturer | AddOn |
| Video Ports | |
|---|---|
| DVI | No |
| Misc Ports | |
|---|---|
| Management Port | No |
| Total Number of Ports | 2 |
| Number of Serial Ports | 1 |
| Parallel Port | No |
| ST Port Type | Duplex |
| Number of ST Ports | 1 |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Optical Fiber |
| Cables | |
|---|---|
| Fiber Mode Supported | Single-mode |
| Fiber Optic Cable Wavelength | 1310 nm |
| Compliance & Certification | |
|---|---|
| TAA Compliant | No |

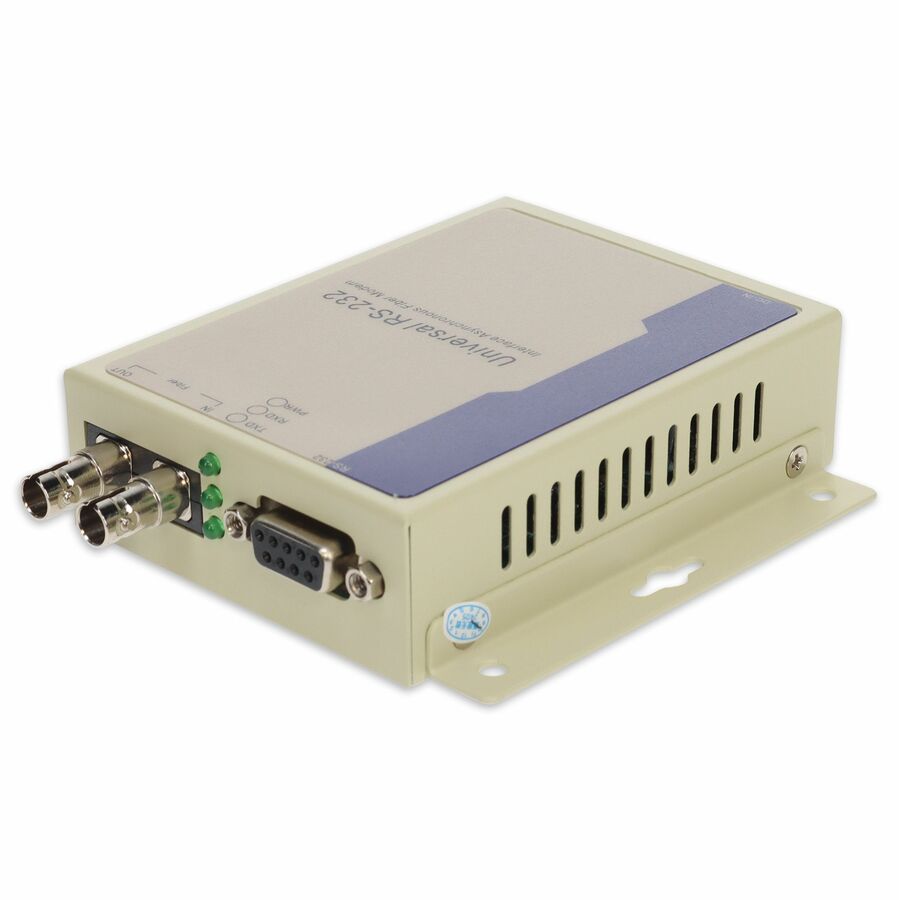

AddOn Serial RS232 to Fiber SMF 1310nm 20km ST Serial Media Converter - 1 x ST Ports - 20 km - Desktop
