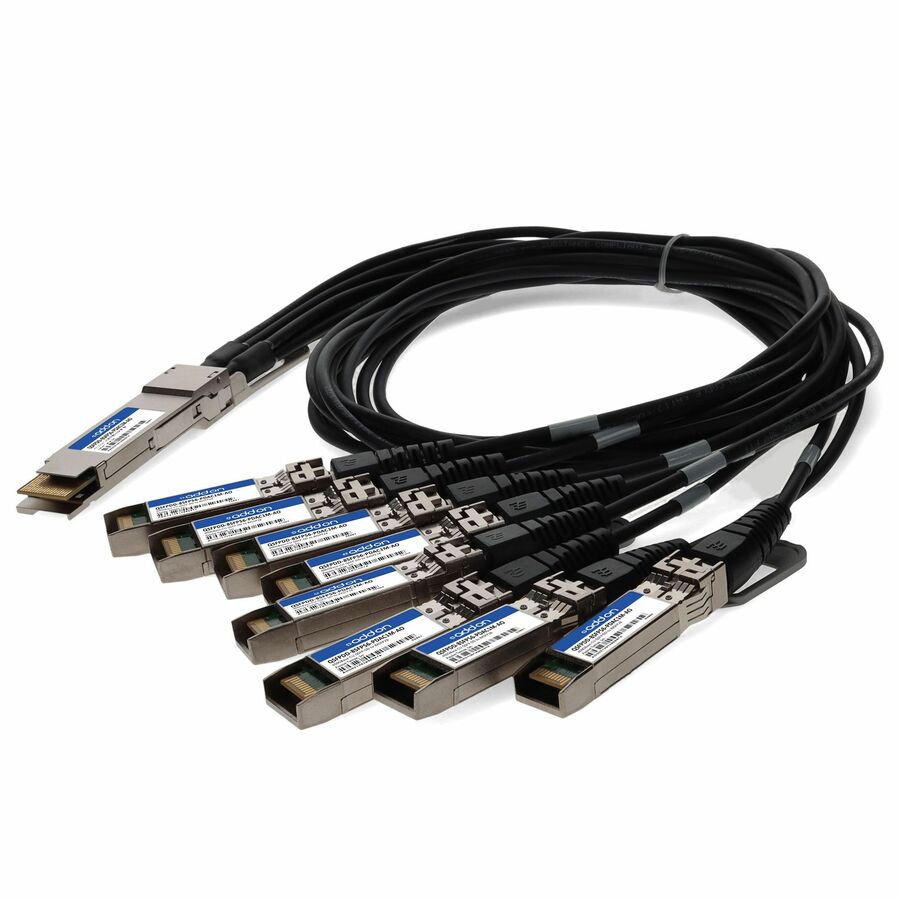

This is an industry standard 400GBase-CU QSFP-DD 400G to 8xSFP56 direct attach cable that operates over passive copper with a maximum reach of 1.0m (3.3ft). It has been programmed, uniquely serialized, and data-traffic and application tested to ensure it is 100% compliant and functional. This direct attach cable is TAA (Trade Agreements Act) compliant, and is built to comply with MSA (Multi-Source Agreement) standards. We stand behind the quality of our products and proudly offer a limited lifetime warranty.
- Compliant with QSFP-DD MSA Specification Rev 3.4
- SFF-8679 electrical interface compliant
- SFF-8636 management interface support
- Compliant with IEEE802.3Bj, By, IEEE802.3CD Standard
- Support 28 Gbps NRZ or 56 Gbps PAM-4 electrical datarates/channel
- I2C for EEPROM communication
- Pull to Release latch design
- Excellent EMI/EMC performance 360-degree cable shield termination
- Advantage dual side pre-solder automated assembly technologies
- Low loss, stronger mechanical features, more flexible
- ROHS-6 Compliant
| Brand | |
|---|---|
| Brand | AddOn |
| General Features | |
|---|---|
| Data Transfer Rate | 400 Gbit/s |
| Manufacturer | AddOn |
| Cables | |
|---|---|
| Cable Length | 3.28 ft |
| Cable Type | Twinaxial |
| Connector Type on First End | QSFP-DD Network - Male |
| Connector on First End Details | 1 x QSFP-DD Network - Male |
| Connector Gender on First End | Male |
| Connector Type on Second End | SFP56 Network - Male |
| Connector Gender on Second End | Male |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Miscellaneous | |
|---|---|
| Product Name | Twinaxial Network Cable |
