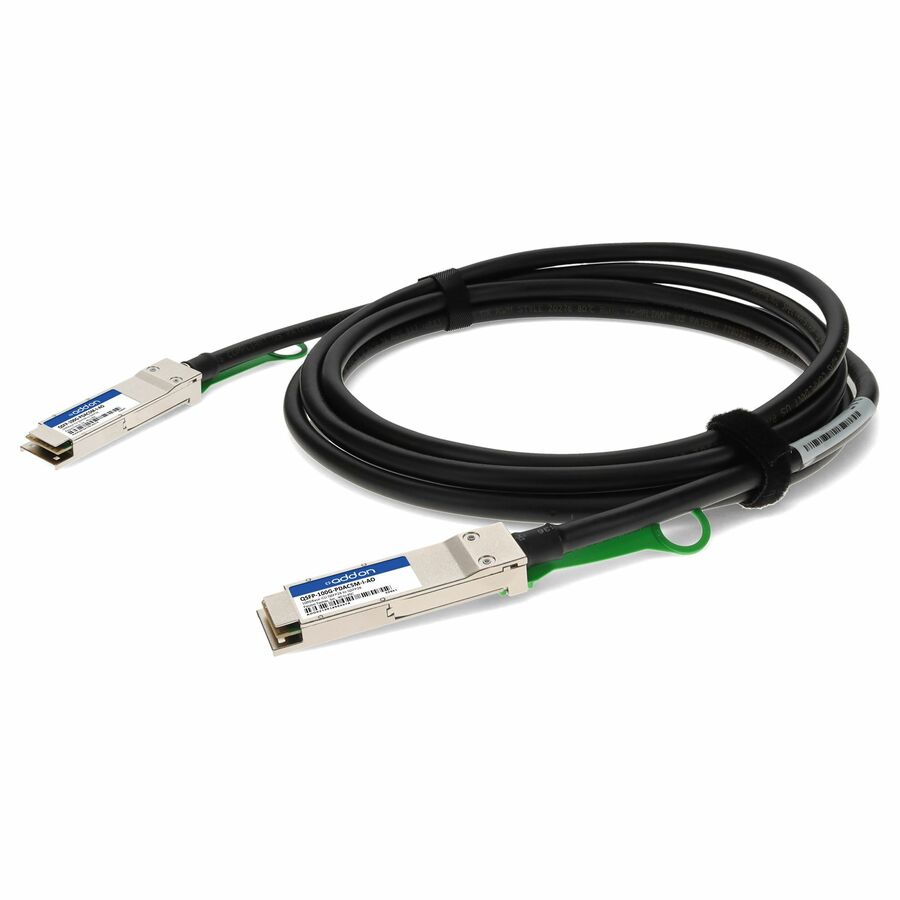

This is an MSA compliant 100GBase-CU QSFP28 to QSFP28 direct attach cable that operates over passive copper with a maximum reach of 5m. It has been programmed, uniquely serialized, and data-traffic and application tested to ensure it is 100% compliant and functional. This direct attach cable is TAA (Trade Agreements Act) compliant, and is built to comply with MSA (Multi-Source Agreement) standards. We stand behind the quality of our products and proudly offer a limited lifetime warranty.
- QSFP28 conforms to the Small Form Factor SFF-8436
- 4-Channel Full-Duplex Passive Copper Cable Transceiver
- Support for multi-gigabit data rates: 16Gb/s - 25.78Gb/s (per channel)
- Maximum aggregate data rate: 100Gb/s (4x25.78Gb/s)
- IEEE 802.3bj 100GBase-CR4
- Copper link length up to 5m
- Power Supply: +3.3V
- Low crosstalk
- I2C based two-wire serial interface for EEPROM signature which can be customized
- Industrial Temperature -40 to +85 Celsius
| Brand | |
|---|---|
| Brand | AddOn |
| General Features | |
|---|---|
| Data Transfer Rate | 100 Gbit/s |
| Manufacturer | AddOn |
| Cables | |
|---|---|
| Cable Length | 16.40 ft |
| Cable Type | Twinaxial |
| Connector Type on First End | QSFP28 Network |
| Connector on First End Details | 1 x QSFP28 Network |
| Connector Type on Second End | QSFP28 Network |
| Connector on Second End Details | 1 x QSFP28 Network |
| Jacket Type | CL2 |
| American Wire Gauge | 26 AWG |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
AddOn MSA and TAA Compliant 100GBase-CU QSFP28 to QSFP28 Direct Attach Cable (Passive Twinax, 5m, 26AWG, -40 to 85C) - 16.40 ft Twinaxial Network Cable for Network Device, Transceiver - First End: 1 x QSFP28 Network - Second End: 1 x QSFP28 Network - 100 Gbit/s - CL2 - 26 AWG - Black - 1.0 - TAA Compliant
