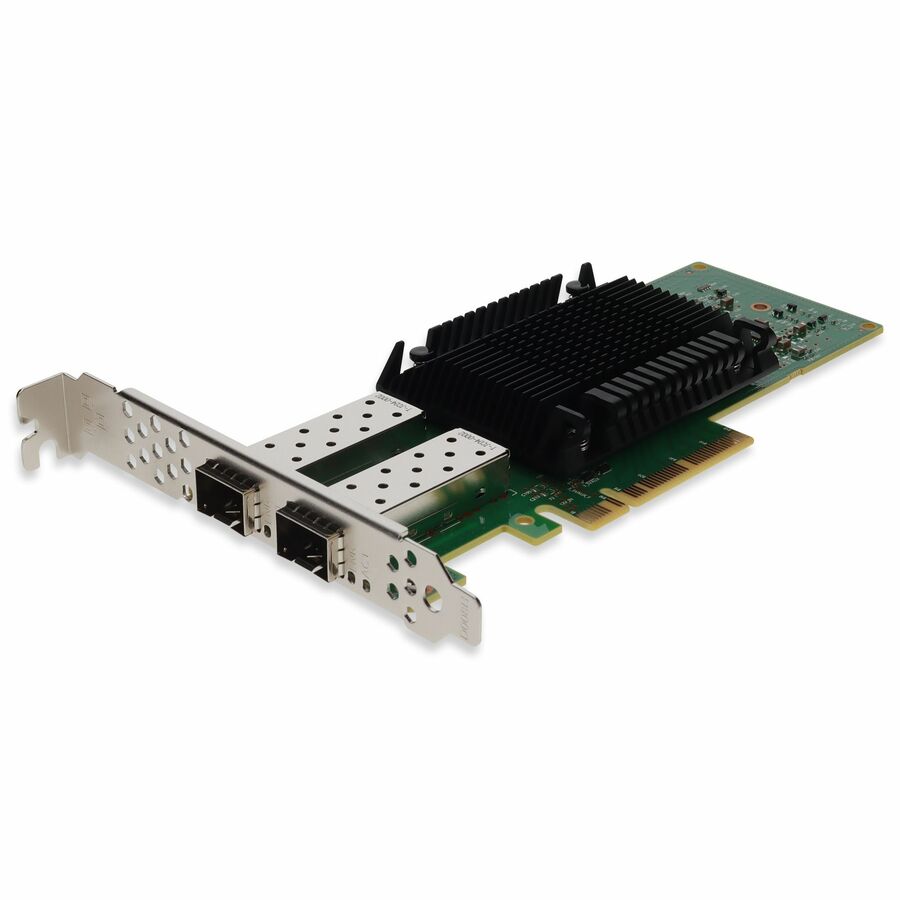

This is a Mellanox MCX4121A-XCAT ConnectX-5 EN Network Interface Card, 10/25GbE Dual Port SFP28, PCIe3.0 x 8 network interface card with a Dual open Port SFP28 port that complies with IEEE 802.3 standards. It is based on an Intel XL710 chipset and is compatible with a variety of different applications and operating systems, including Windows, Linux and Unix-like systems. Providing 10/25Gbs of network speed, it fully supports high-end servers and various other networking applications. In addition, this card supports high level VLAN filtering. The Dual Port SFP28 allows users to choose from a range of SFP28 transceivers to accommodate multi-mode (MMF) and single-mode (SMF) fiber, granting customizable reach. This product includes both half-height and full-height brackets. Our network interface cards are 100% compliant, and offer a cost effective solution for all of your network upgrade needs. With our certification test program, we guarantee your product will work right the first time.
- 25Gigabit Ethernet Card guarantees a faster and efficient networking interface to client, server or workstation with maximum connectivity reliability
- This 8000 MB/s bandwidth PCI Express 3.0 x8 adapter ensures easy connectivity and plug-in form-factor for affordable and reliable Ethernet network
- Supports optical fiber cable to span longer distances and provides data transmission rates par excellence between servers and network components
- With the 10GBase-X technology get up to 10Gbps data transfer rate over the supported network cable
| Brand | |
|---|---|
| Brand | AddOn |
| Networking & Connectivity | |
|---|---|
| Network Technology | 25GBase-X |
| Size / Dimensions | |
|---|---|
| Form Factor | Plug-in Card |
| Bracket Height | Half-Height/Full-Height |
| General Features | |
|---|---|
| Chipset Manufacturer | Intel |
| Chipset Model | XL710 |
| Maximum Data Transfer Rate | 200 Gbit/s |
| Maximum Operating Distance | 328.08 ft |
| Manufacturer | AddOn |
| Expansion Slots | |
|---|---|
| Total Number of Expansion Slots | 2 |
| Expansion Slot Type | SFP28 |
| Misc Ports | |
|---|---|
| Host Interface | PCI Express 3.0 x8 |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Optical Fiber |
| Cables | |
|---|---|
| Fiber Mode Supported | Single-mode |
| Compliance & Certification | |
|---|---|
| TAA Compliant | No |
