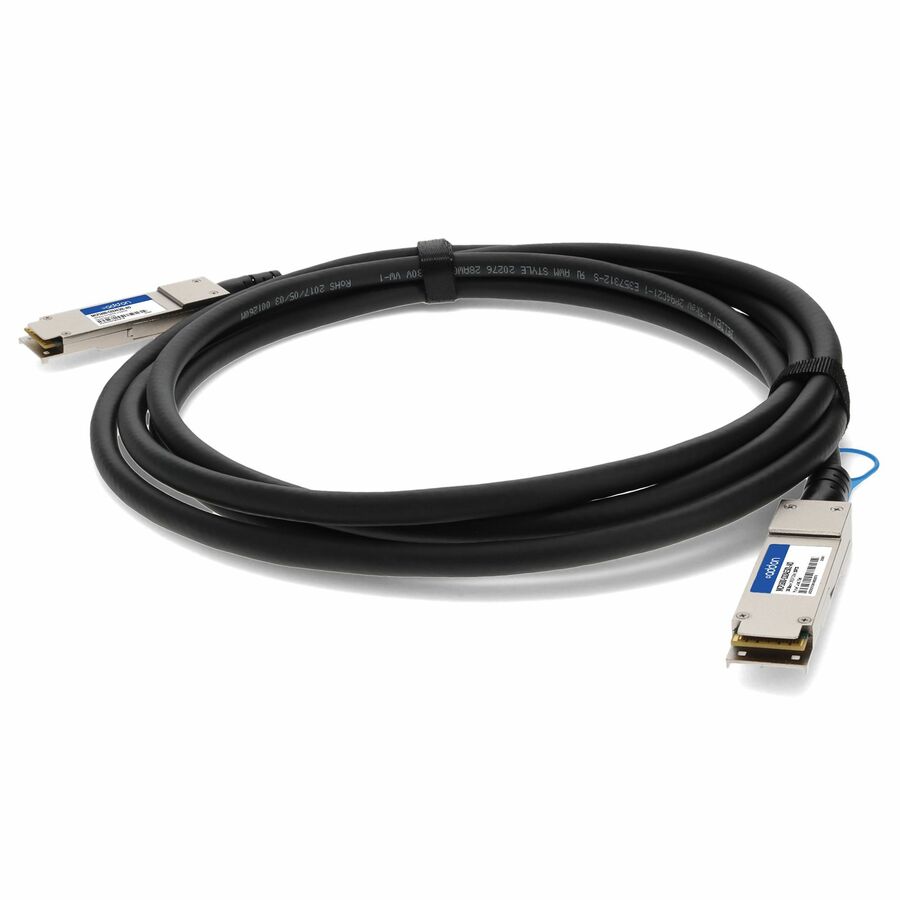

This is a Mellanox MCP1600-C02AE30L compatible 100GBase-CU QSFP28 to QSFP28 direct attach cable that operates over passive copper with a maximum reach of 2.5m (8.2ft). It has been programmed, uniquely serialized, and data-traffic and application tested to ensure it is 100% compliant and functional. This direct attach cable is TAA (Trade Agreements Act) compliant, and is built to comply with MSA (Multi-Source Agreement) standards. We stand behind the quality of our products and proudly offer a limited lifetime warranty.
- Up to 100 Gbps bi-directional data links
- AC coupled inputs and outputs
- Compliant with QSFP28 MSA specifications
- All-metal housing for superior EMI performance
- Single power supply 3.3V, low power consumption
- 100 Ohm differential impedance
- ROHS Compliant
- Operating Temperature: 0 to 70 Celsius
| Brand | |
|---|---|
| Brand | AddOn |
| General Features | |
|---|---|
| Data Transfer Rate | 100 Gbit/s |
| Manufacturer | AddOn |
| Cables | |
|---|---|
| Cable Length | 8.20 ft |
| Cable Type | Twinaxial |
| Connector Type on First End | QSFP28 Network |
| Connector on First End Details | 1 x QSFP28 Network |
| Connector Gender on First End | Male |
| Connector Type on Second End | QSFP28 Network |
| Connector Gender on Second End | Male |
| American Wire Gauge | 30 AWG |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
