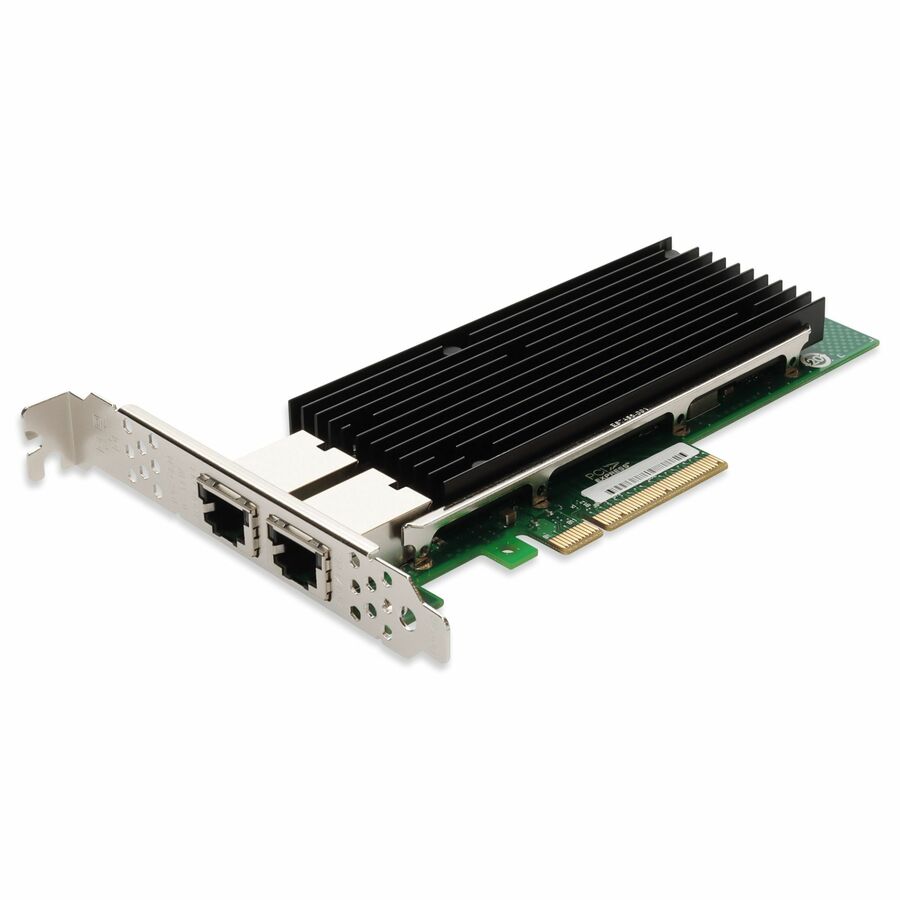

This is a Lenovo 0C19497 comparable 10-Gigabit Ethernet PCIe 2.0 x8 network interface card with dual RJ-45 ports that comply with IEEE 802.3 standards. It is based on an Intel X540 chipset and is compatible with a variety of different applications and operating systems, including Windows, Linux and Unix-like systems. Providing 10Gbs of network speed, it fully supports high-end servers and various other networking applications. In addition, this card supports high level VLAN filtering. The dual RJ-45 ports operate over copper patch cable, allowing for an operating distance of 100m. This product includes both half-height and full-height brackets. Our network interface cards are 100% compliant, and offer a cost effective solution for all of your network upgrade needs. With our certification test program, we guarantee your product will work right the first time.
- 10Gigabit Ethernet Card guarantees a replacement networking interface to client, server or workstation
- This 4000 MB/s bandwidth PCI Express 2.0 x8 adapter ensures easy connectivity and plug-in form-factor for affordable and reliable Ethernet network
- For high bandwidth connectivity, add this efficient dual port 10gigabit ethernet card to your server or workstation
- Supports cost-efficient twisted pair cables for speedy data transfer up to 100 meters
- With the 10/100/1000Base-T technology get up to 1000Mbps data transfer rate over the twisted pair cable
| Brand | |
|---|---|
| Brand | AddOn |
| Networking & Connectivity | |
|---|---|
| Network Technology | 10/100/1000Base-T |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 2 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Size / Dimensions | |
|---|---|
| Form Factor | Plug-in Card |
| General Features | |
|---|---|
| Chipset Manufacturer | Intel |
| Chipset Model | X540 |
| Maximum Data Transfer Rate | 80 Gbit/s |
| Maximum Operating Distance | 328.08 ft |
| Manufacturer | AddOn |
| Misc Ports | |
|---|---|
| Total Number of Ports | 2 |
| Host Interface | RJ-45 |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
| Compliance & Certification | |
|---|---|
| TAA Compliant | No |
