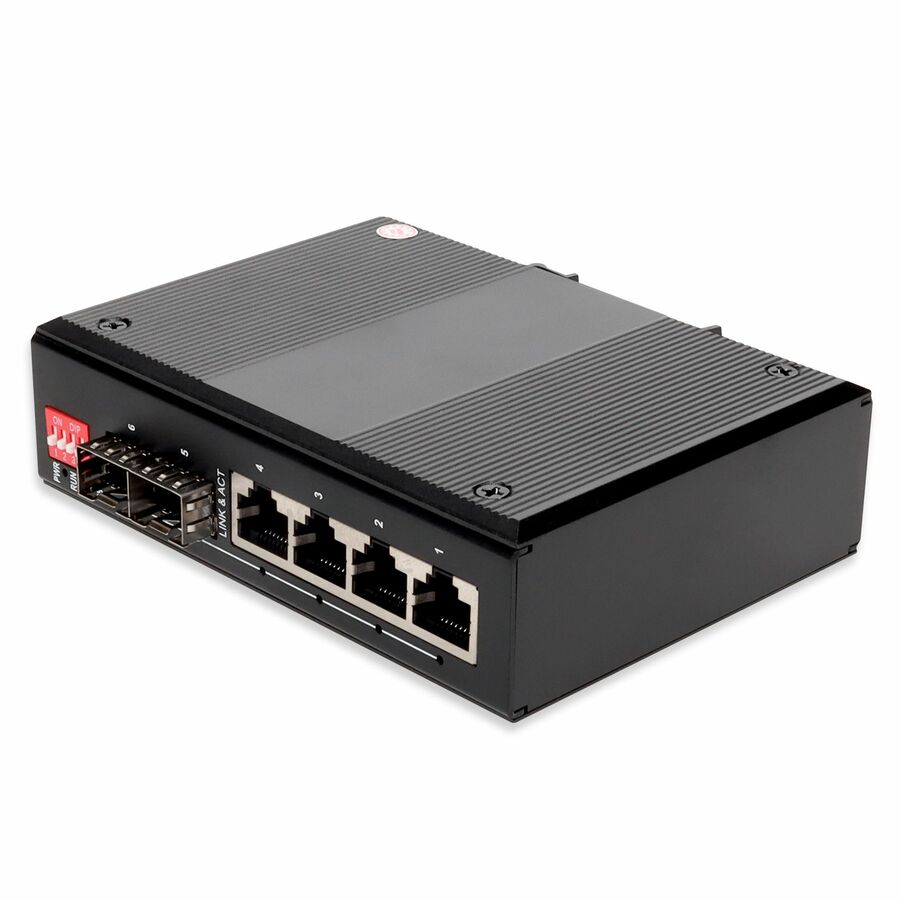

This is a six port media converter that converts and supports four 10/100/1000Base-TX(RJ-45) to two 1000Base-X via 2 open SFP port connectors. The open SFP ports allows users to customize between the SX, LX, or BX connections. This media converter provides a cost effective conversion from four 10/100/1000Base-TX(RJ-45) to two 1000Base-X, while extending the network reach beyond the 100m reach limitation of copper. All the four 10/100/1000Mbps UTP RJ-45 ports support full duplex 10/100/1000Mbps connectivity (half duplex only supported in 10/100Mbps mode). Our media converters and network interface cards are 100% compliant for all of our networking needs. Now you have a cost effective solution to your network upgrade needs. With our certification test program, we can guarantee your product will work right the first time.
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Meet the multiple network connectivity needs of today's network environment with this 4 transceiver/media converter
- With 10/100/1000Base-TX technology get up to 1000Mbps data transfer rate over twisted pair cable
- The Rail-mountable provides convenient installation
| Brand | |
|---|---|
| Brand | AddOn |
| Power & Battery | |
|---|---|
| Plug/Connector Type | Terminal Block |
| Power Source | AC |
| Networking & Connectivity | |
|---|---|
| Network Technology | 1000Base-X |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 4 |
| Network (RJ-45) | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Wall Mountable |
| General Features | |
|---|---|
| Maximum Data Transfer Rate | 1 Gbit/s |
| Maximum Distance Supported | 0.10 km |
| Manufacturer | AddOn |
| Expansion Slots | |
|---|---|
| Total Number of Expansion Slots | 2 |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 2 |
| Misc Ports | |
|---|---|
| Total Number of Ports | 4 |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Optical Fiber |
| Cables | |
|---|---|
| Fiber Mode Supported | Single-mode |
| Compliance & Certification | |
|---|---|
| TAA Compliant | No |
