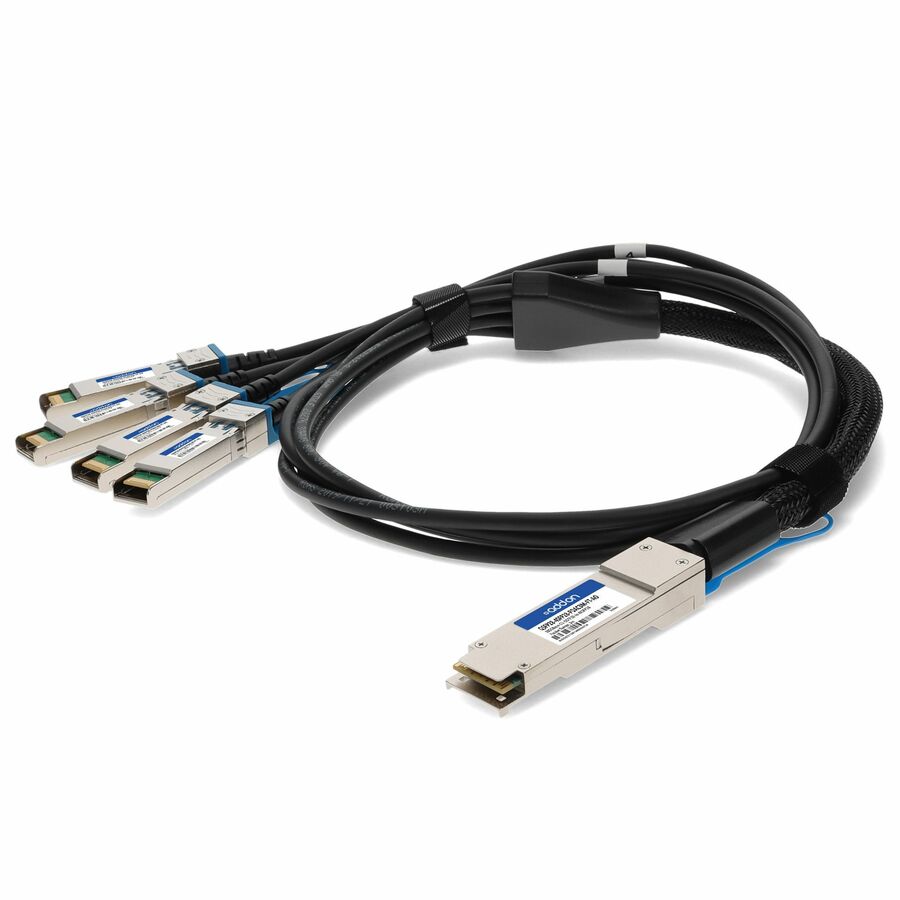

This is a Fortinet® compatible 100GBase-CU QSFP28 to 4xSFP28 direct attach cable that operates over passive copper with a maximum reach of 3.0m (9.8ft). It has been programmed, uniquely serialized, and data-traffic and application tested to ensure it is 100% compliant and functional. This direct attach cable is TAA (Trade Agreements Act) compliant, and is built to comply with MSA (Multi-Source Agreement) standards. We stand behind the quality of our products and proudly offer a limited lifetime warranty.
- QSFP28 End: Compliant with QSFP28 MSA specifications
- 4 independent duplex channels operating at 25Gbps
- SFP28 End: Compliant with SFP28 MSA specifications
- 100 Ohm differential impedance
- All-metal housing for superior EMI performance
- AC coupled inputs and outputs
- Operating temperature range: 0 to 70 Celsius
- Single power supply 3.3V, low power consumption
- RoHS Compliant and Lead Free
| Brand | |
|---|---|
| Brand | AddOn |
| Audio | |
|---|---|
| Impedance | 110 Ohm |
| General Features | |
|---|---|
| Data Transfer Rate | 100 Gbit/s |
| Manufacturer | AddOn |
| Cables | |
|---|---|
| Cable Length | 9.84 ft |
| Cable Type | Twinaxial |
| Connector Type on First End | QSFP28 Network - Male |
| Connector on First End Details | 1 x QSFP28 Network - Male |
| Connector Gender on First End | Male |
| Connector Type on Second End | SFP28 Network - Male |
| Connector on Second End Details | 4 x SFP28 Network - Male |
| Connector Gender on Second End | Male |
| Jacket Type | VW-1 |
| American Wire Gauge | 28 AWG |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
AddOn Fortinet® Compatible TAA Compliant 100GBase-CU QSFP28 to 4xSFP28 Direct Attach Cable (Passive Twinax, 3m) - 9.84 ft Twinaxial Network Cable for Network Device - First End: 1 x QSFP28 Network - Male - Second End: 4 x SFP28 Network - Male - 100 Gbit/s - VW-1 - 28 AWG - 1 - TAA Compliant
