AddOn Calix® 100-05588 Compatible TAA Compliant 100GBase-CU QSFP28 to QSFP28 Direct Attach Cable (Passive Twinax, 2m, 30AWG, -40 to 85C)

$ 214.99 $ 214.99
$ 214.99

$ 214.99 / Units
  • Brand
  • Connector on Second End Detai
  • Product Name
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Features
  • Cable Length
  • Cable Type
  • Connector Type on First End
  • Connector on First End Details
  • Connector Type on Second End
  • Connector on Second End Details
  • American Wire Gauge
  • Product Color
  • Color Family
  • Product Material
  • Material Details
  • Data Transfer Rate
  • TAA Compliant
  • Environmentally Friendly
  • Environmental Compliance
  • Packaged Quantity
  • Limited Warranty
  • Manufacturer
  • Product Type
  • Device Supported
  • Manufacturer Website Address
Add to cart
Buy now
Add to wishlist
This product is eligible for 30-day returns. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days
Contact Us

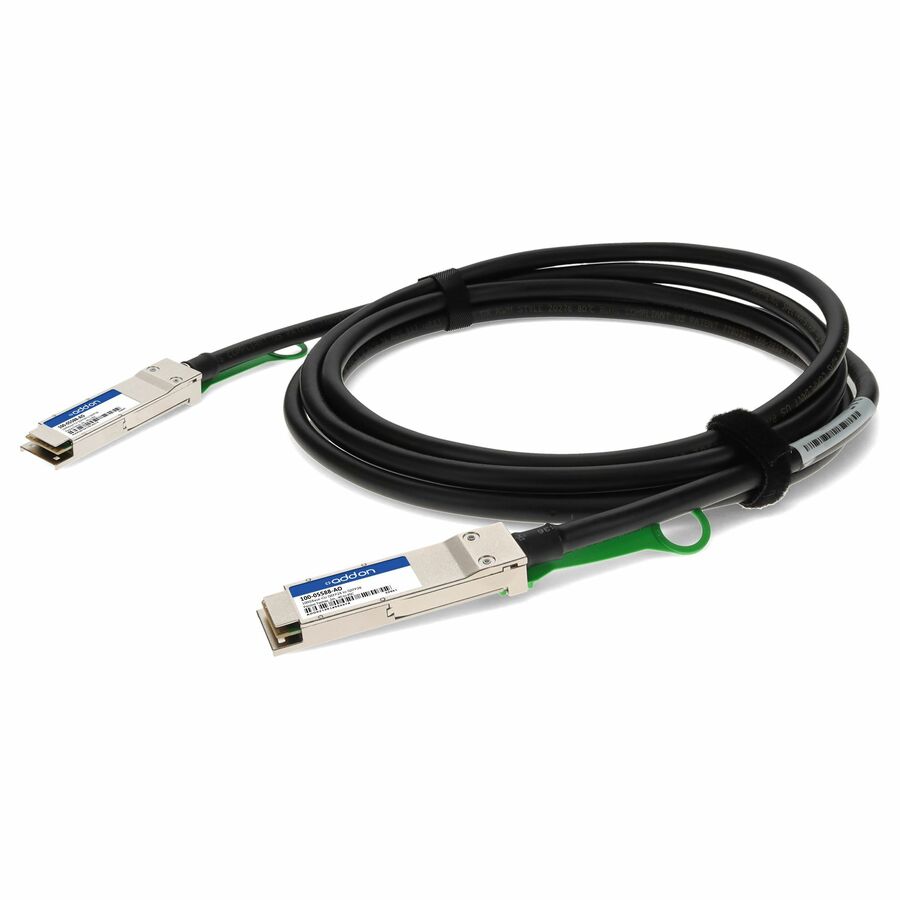

This is a Calix® 100-05588 compatible 100GBase-CU QSFP28 to QSFP28 direct attach cable that operates over passive copper with a maximum reach of 2m. It has been programmed, uniquely serialized, and data-traffic and application tested to ensure it is 100% compliant and functional. This direct attach cable is TAA (Trade Agreements Act) compliant, and is built to comply with MSA (Multi-Source Agreement) standards. We stand behind the quality of our products and proudly offer a limited lifetime warranty.

  • QSFP28 conforms to the Small Form Factor SFF-8436
  • 4-Channel Full-Duplex Passive Copper Cable Transceiver
  • Support for multi-gigabit data rates: 16Gb/s - 25.78Gb/s (per channel)
  • Maximum aggregate data rate: 100Gb/s (4x25.78Gb/s)
  • IEEE 802.3bj 100GBase-CR4
  • Copper link length up to 2m
  • Power Supply: +3.3V
  • Low crosstalk
  • I2C based two-wire serial interface for EEPROM signature which can be customized
  • Industrial Temperature -40 to +85 Celsius
Brand
Brand AddOn
General Features
Data Transfer Rate 100 Gbit/s
Manufacturer AddOn
Cables
Cable Length 6.56 ft
Cable Type Twinaxial
Connector Type on First End QSFP28 Network
Connector on First End Details 1 x QSFP28 Network
Connector Type on Second End QSFP28 Network
Connector on Second End Details 1 x QSFP28 Network
American Wire Gauge 30 AWG
Compliance & Certification
TAA Compliant Yes
Environmentally Friendly Yes
Brand AddOn
UPC/GTIN 195285641038
MPN 100-05588-AO
Unit Count 1 Units
Warranty Lifetime
Return Policy This product is eligible for 30-day returns. See our return policy for details.
AddOn Calix® 100-05588 Compatible TAA Compliant 100GBase-CU QSFP28 to QSFP28 Direct Attach Cable (Passive Twinax, 2m, 30AWG, -40 to 85C) - 6.56 ft Twinaxial Network Cable for Transceiver, Network Device - First End: 1 x QSFP28 Network - Second End: 1 x QSFP28 Network - 100 Gbit/s - 30 AWG - Black - 1.0 - TAA Compliant
