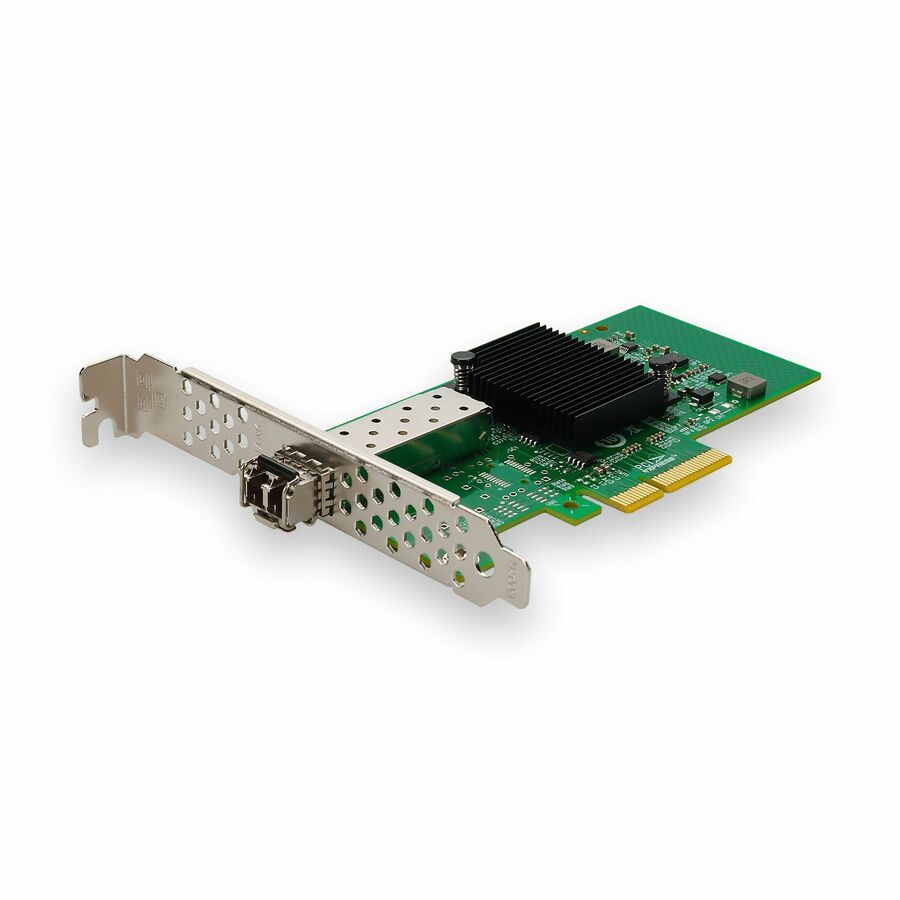

This is an Allied Telesis® AT-2914SX/LC-001 comparable Gigabit Ethernet PCIe 2.0 x4 network interface card with 1 included SX SFP transceiver that complies with IEEE 802.3 standards. It is based on an Intel 82574 chipset and is compatible with a variety of different applications and operating systems, including Windows, Linux and Unix-like systems. Providing 1Gbs of network speed, it fully supports high-end servers and various other networking applications. In addition, this card supports high level VLAN filtering. The single open SFP port accommodates multi-mode, providing a reach up to 550m. This product includes both half-height and full-height brackets. Our network interface cards are 100% compliant, and offer a cost effective solution for all of your network upgrade needs. With our certification test program, we guarantee your product will work right the first time.
- Compliant with PCIe Rev.1.1 interface
- Virtual LANs-02.1q VLAN tagging
- LC connector
- Small Form Factor Pluggable (SFP) Cage for SFP
- Controllers offload TCP/UDP/IP checksum calculations
- Deep packet buffer per channel lowers CPU utilization
- Supports 1000Base-LX, SX
- LEDS indicators for link/Activity Mode
- 1x Open SFP Port
- Intel 82576
| Brand | |
|---|---|
| Brand | AddOn |
| Networking & Connectivity | |
|---|---|
| Network Technology | 1000Base-SX |
| Size / Dimensions | |
|---|---|
| Form Factor | Plug-in Card |
| General Features | |
|---|---|
| Chipset Manufacturer | Intel |
| Chipset Model | 82574 |
| Maximum Data Transfer Rate | 1 Gbit/s |
| Manufacturer | AddOn |
| Expansion Slots | |
|---|---|
| Total Number of Expansion Slots | 1 |
| Expansion Slot Type | SFP (mini-GBIC) |
| Misc Ports | |
|---|---|
| Host Interface | PCI Express 2.0 x4 |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Optical Fiber |
| Cables | |
|---|---|
| Fiber Mode Supported | Multi-mode |
| Compliance & Certification | |
|---|---|
| TAA Compliant | No |
