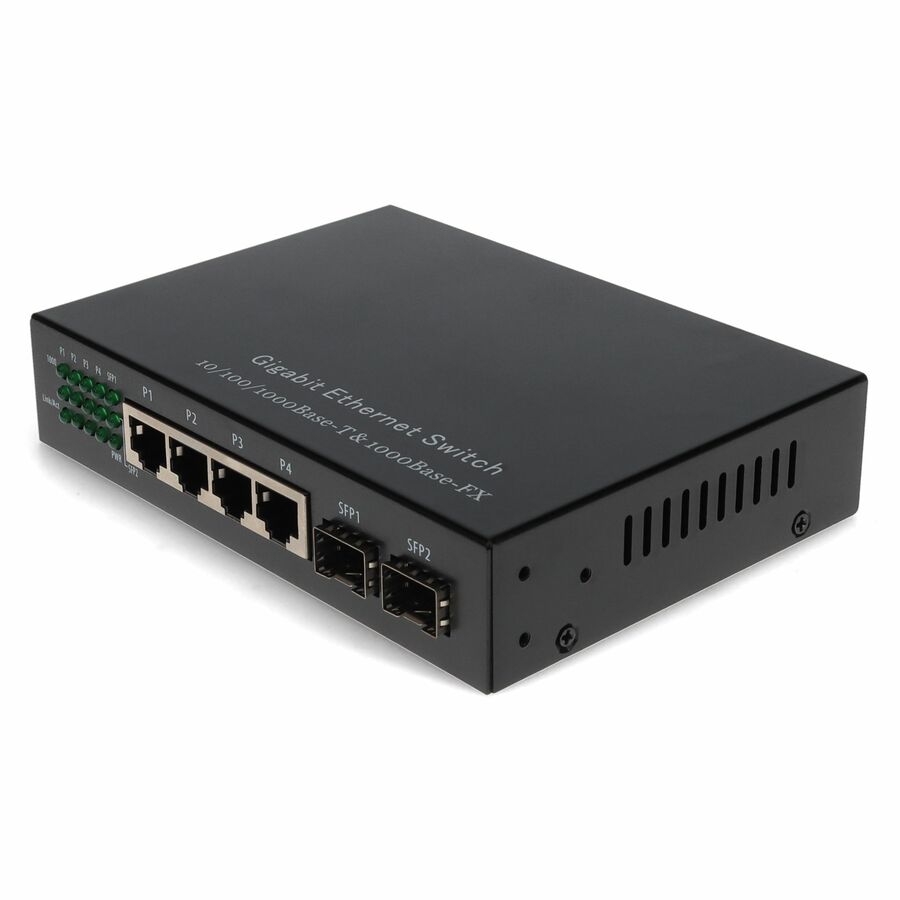

This is an unmanaged four port RJ-45 to two port SFP switch. It is designed with a switch controller and buffer memory that connects two types of media. The UTP port supports all 10/100/1000 Mbps RJ-45 half and full duplex modules, and the SFP port supports only 1000Mbps and full-duplex modules. This can extend your fiber footprint or convert fiber runs from short multi-mode links to extended single-mode links. Our media converters and switches are 100% compliant for all of our networking needs. Now you have a cost effective solution to your network upgrade needs. With our certification test program, we can guarantee your product will work right the first time.
- Effectively increases available bandwidth on your network
- Quickly and easily set up a wired network with 4 networking ports
- With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
- The unmanaged switch provides a quick, easy and cost-saving way to add wired networking to your home, office or small business; no intervention needed
- Gigabit Ethernet port for ultra-fast network speeds
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
| Brand | |
|---|---|
| Brand | AddOn |
| Power & Battery | |
|---|---|
| Input Voltage | 5 V DC |
| Power Source | Power Adapter |
| Networking & Connectivity | |
|---|---|
| Network Technology | 10/100/1000Base-TX |
| Layer Supported | 2 |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 4 |
| Network (RJ-45) | Yes |
| Total Number of Network Ports | 4 |
| PoE (RJ-45) Port | No |
| Appearance | |
|---|---|
| Modular | Yes |
| General Features | |
|---|---|
| Manageable | No |
| Maximum Data Transfer Rate | 128 MB/s |
| Manufacturer | AddOn |
| Expansion Slots | |
|---|---|
| Total Number of Expansion Slots | 2 |
| Expansion Slot Type | SFP (mini-GBIC) |
| Number of SFP Slots | 2 |
| Misc Ports | |
|---|---|
| Port/Expansion Slot Details | 2 x Gigabit Ethernet Expansion Slot |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Optical Fiber |
| Cables | |
|---|---|
| Fiber Mode Supported | Multi-mode |
| Compliance & Certification | |
|---|---|
| TAA Compliant | No |
