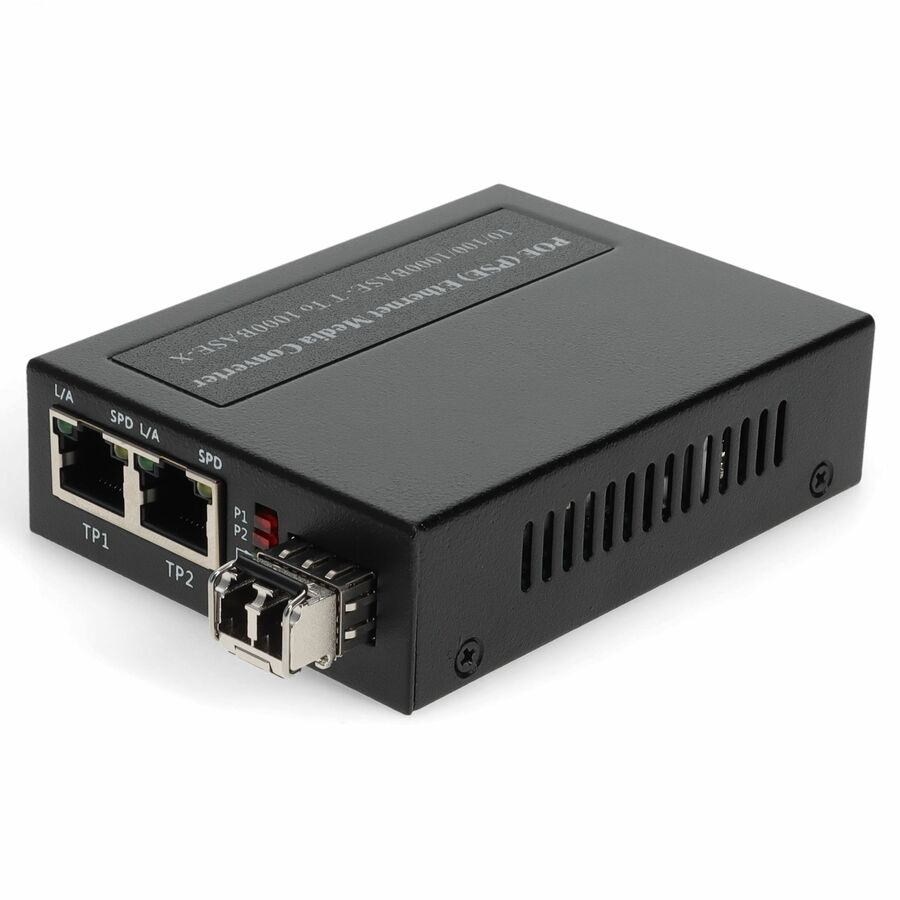

AddOn 2x 10/100/1000Base-TX(RJ-45) to 1000Base-SX(LC) MMF 850nm 550m Media Converter with PoE+

$ 150.49 $ 150.49
$ 150.49

$ 150.49 / Units
  • Brand
  • Product Name
  • Number of Network (RJ-45) Por
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Network Technology
  • Network (RJ-45)
  • Number of Network (RJ-45) Ports
  • Number of PoE+ (RJ-45) Ports
  • PoE Port Type
  • Fiber Mode Supported
  • Total Number of Ports
  • Number of LC Ports
  • Fiber Optic Cable Wavelength
  • Ethernet Technology
  • Media Type Supported
  • Maximum Distance Supported
  • TAA Compliant
  • Environmental Compliance
  • Packaged Quantity
  • Limited Warranty
  • Manufacturer
  • Product Type
  • Application/Usage
  • Manufacturer Website Address
  • Power Source
Add to cart
Buy now
Add to wishlist
This product is eligible for 30-day returns. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days
Contact Us

This is a three port media converter that converts and supports two 10/100/1000Base-TX(RJ-45) to one 1000Base-SX via an LC port connector. This media converter provides a cost effective conversion from two 10/100/1000Base-TX(RJ-45) to one 1000Base-SX, while extending the network reach beyond the 100m reach limitation of copper. The two 10/100/1000Mbps UTP RJ-45 ports support full duplex 10/100/1000Mbps connectivity (half duplex only supported in 10/100Mbps mode). The PoE(PSE) ethernet switch is a Power Sourcing Equipment (PSE) which combines data transfered over cable with 48V(typical) power supply, providing power to IEEE802.3at powered device (PD) over CAT5e UTP cable (cable length up to 100 meters/330 feet). The two UTP RJ-45 ports are organized to be PoE output port, and each PoE port can output up to 30 watts (DC 52V/.6A) power into CAT5e twisted-pair cable. Our media converters and network interface cards are 100% compliant for all of our networking needs. Now you have a cost effective solution to your network upgrade needs. With our certification test program, we can guarantee your product will work right the first time.

  • Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
  • Expand your network capacity and fulfill requirement with this 3 transceiver/media converter
  • With 10/100/1000Base-TX technology get up to 1000Mbps data transfer rate over twisted pair cable
Brand
Brand AddOn
Power & Battery
Power Source Power Supply
Networking & Connectivity
Network Technology 1000Base-SX
Ethernet Port
Number of Network (RJ-45) Por 2
Network (RJ-45) Yes
Number of Network (RJ-45) Ports 2
Number of PoE+ (RJ-45) Ports 2
PoE Port Type PSE
General Features
Maximum Distance Supported 0.55 km
Manufacturer AddOn
Misc Ports
Total Number of Ports 3
Number of LC Ports 1
Printer/Scanner/Fax Specs
Media Type Supported Optical Fiber
Cables
Fiber Mode Supported Multi-mode
Fiber Optic Cable Wavelength 850 nm
Compliance & Certification
TAA Compliant No
AddOn 2x 10/100/1000Base-TX(RJ-45) to 1000Base-SX(LC) MMF 850nm 550m Media Converter with PoE+ - 2 x Network (RJ-45) - 2x PoE+ (RJ-45) Ports - 1 x LC Ports - Multi-mode - 850 nm Fiber - Gigabit Ethernet - 10/100/1000Base-TX, 1000Base-SX - 0.55 km - Power Supply
